Windshield Wiper Motor And Link Removal/Installation: Notes

WARNING: This page is about a different car, the 2020 Mazda CX-30. However, it is still accessible from the selected car via links, so may be relevant.

Disconnect the negative battery terminal. (See NEGATIVE BATTERY TERMINAL DISCONNECTION/CONNECTION (US) .)
Remove the windshield wiper arm and blade. (See WINDSHIELD WIPER ARM AND BLADE REMOVAL/INSTALLATION .)
Remove the cowl grille. (See COWL GRILLE REMOVAL/INSTALLATION .)
CAUTION:
- Always apply protective tape to the windshield end. If the windshield wiper motor and link contacts the windshield, it could damage the windshield.

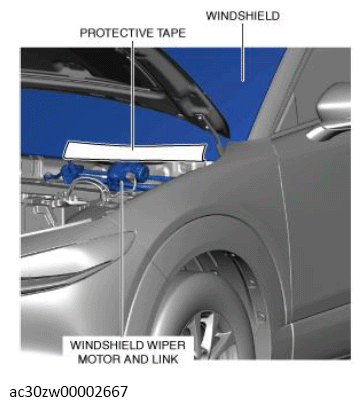

Apply protective tape to the area where the windshield end interferes with the windshield wiper motor and link as shown in the illustration.

Courtesy of MAZDA MOTORS CORP.
Disconnect the connector.

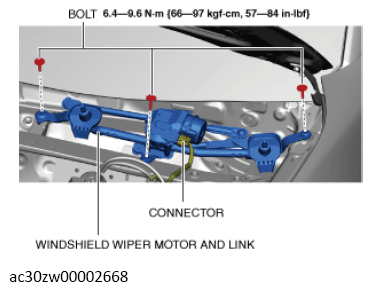

Fig 1: Windshield Wiper Motor And Link, Connector And Bolts With Torque Specification
Courtesy of MAZDA MOTORS CORP.
Remove the bolts. (See BOLT INSTALLATION NOTE .)

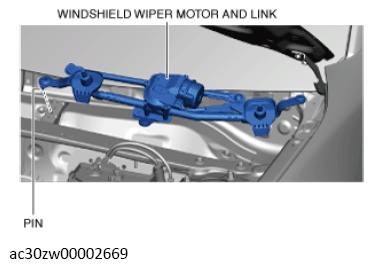

Pull the windshield wiper motor and link out from the pin and remove it.

Courtesy of MAZDA MOTORS CORP.
Install in the reverse order of removal.
Perform the windshield wiper arm and blade initial setting. (See WINDSHIELD WIPER ARM AND BLADE INITIAL SETTING .)
