Rear Speaker Removal/Installation: Hatchback-5HB
WARNING: This page is about a different car, the 2021 Mazda 3. However, it is still accessible from the selected car via links, so may be relevant.
- Disconnect the negative battery terminal. (See NEGATIVE BATTERY TERMINAL DISCONNECTION/CONNECTION (US) .)
- Remove the rear package tray. (See REAR PACKAGE TRAY REMOVAL/INSTALLATION .)
- Remove the trunk side upper trim. (See TRUNK SIDE UPPER TRIM REMOVAL/INSTALLATION .)
- Remove the C-pillar trim. (See C-PILLAR TRIM REMOVAL/INSTALLATION .)

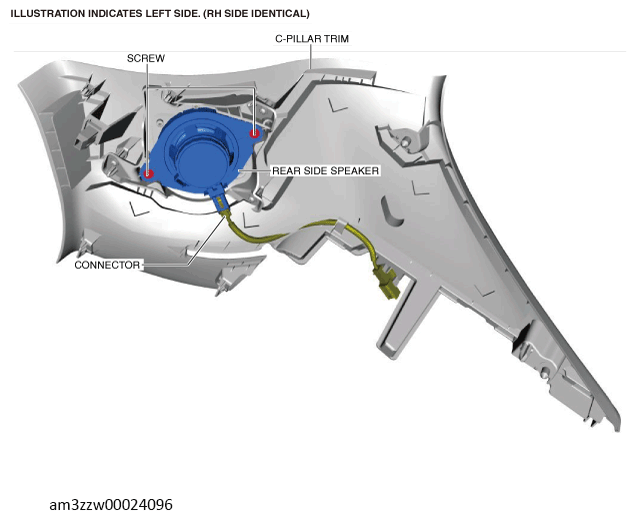

- Remove the screws.
- Disconnect the connector.
- Remove the rear side speaker.
- Install in the reverse order of removal.
