Rear Wiper Motor Removal/Installation

WARNING: This page is about a different car, the 2021 Mazda 3. However, it is still accessible from the selected car via links, so may be relevant.
  1. Disconnect the negative battery terminal. (See NEGATIVE BATTERY TERMINAL DISCONNECTION/CONNECTION (US) .)
  2. Remove the following parts:
    1. Rear wiper arm and blade (See REAR WIPER ARM AND BLADE REMOVAL/INSTALLATION (US) .)
    2. Liftgate upper trim (See LIFTGATE UPPER TRIM REMOVAL/INSTALLATION .)
    3. Liftgate side trim (See LIFTGATE SIDE TRIM REMOVAL/INSTALLATION .)
    4. Liftgate recess (See LIFTGATE RECESS REMOVAL/INSTALLATION .)
    5. Door lock switch (with door lock switch) (See DOOR LOCK SWITCH REMOVAL/INSTALLATION (US) .)
    6. Liftgate lower trim (See LIFTGATE LOWER TRIM REMOVAL/INSTALLATION .)
  3. Disconnect the connectors and clips.

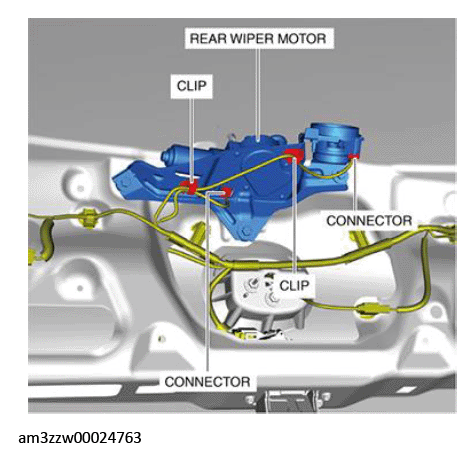

    G13179710Courtesy of MAZDA MOTORS CORP.
  4. Remove the bolts.

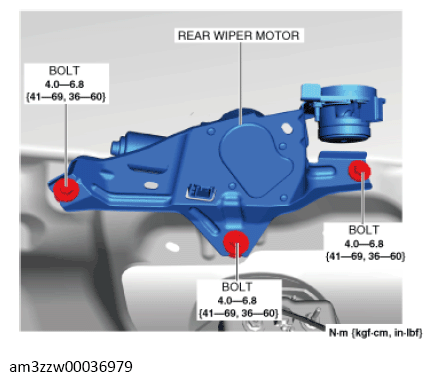

    Fig 1: Rear Wiper Motor Bolts With Torque Specification
    G13718216Courtesy of MAZDA MOTORS CORP.
  5. Pull out the rear wiper motor pin from the outer bushing and remove the rear wiper motor.

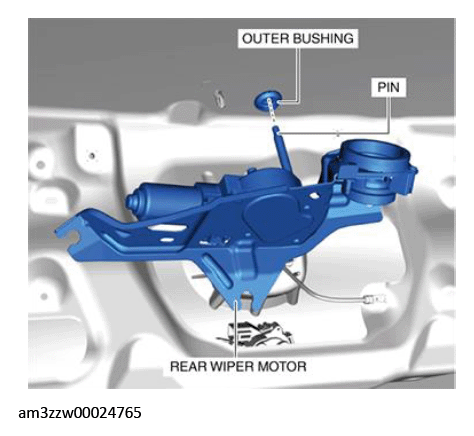

    G13179712Courtesy of MAZDA MOTORS CORP.
  6. Press in the outer bushing from the outside of the liftgate.

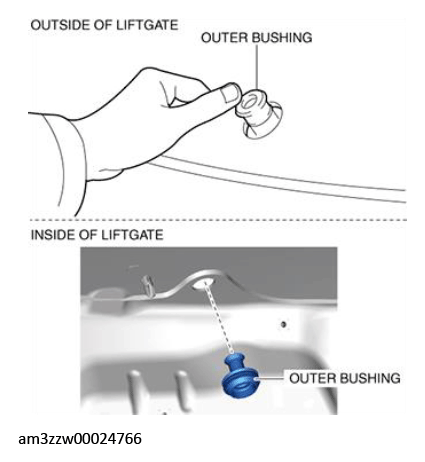

    G13179713Courtesy of MAZDA MOTORS CORP.
  7. Pull the outer bushing from the inside of the liftgate and remove it.
  8. Install in the reverse order of removal.
