Console Side Panel Removal/Installation

  1. Remove the upper panel. (See UPPER PANEL REMOVAL/INSTALLATION .)

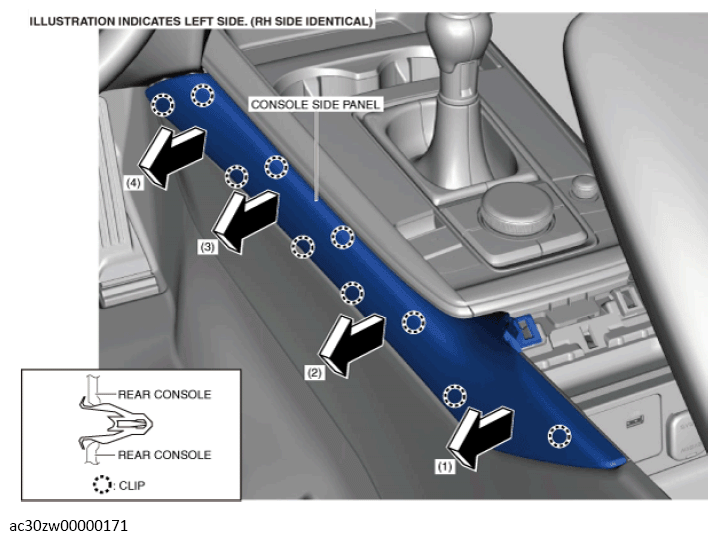

  2. Move the console side panel in the order of arrows (1), (2), (3) and (4) shown in the figure, and remove it while detaching the clips.
    G13560644
  3. Install in the reverse order of removal.
