Blower Motor Inspection
- Disconnect the negative battery terminal. (See NEGATIVE BATTERY TERMINAL DISCONNECTION/CONNECTION (US) .)
- Remove the blower motor. (See BLOWER MOTOR REMOVAL/INSTALLATION (US) .)

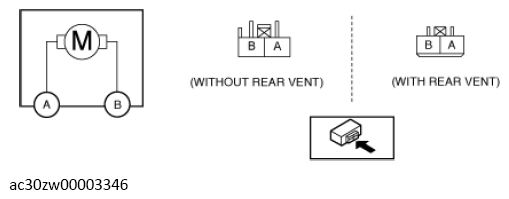

- Connect battery positive voltage to blower motor terminal B, connect terminal A to ground, and then verify its operation.
- If there is any malfunction, replace the blower motor. (See NEGATIVE BATTERY TERMINAL DISCONNECTION/CONNECTION (US) .)
