US/CANADA spec.: Driver-side

  1. Switch the ignition off.
  2. Disconnect the negative battery terminal and wait for 1 min or more. (See NEGATIVE BATTERY TERMINAL DISCONNECTION/CONNECTION (US) .)
  3. Remove the front seat. (See FRONT SEAT REMOVAL/INSTALLATION (US) .)

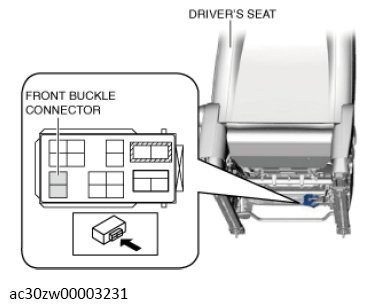

  4. Disconnect the front buckle connector.
    G13559537Courtesy of MAZDA MOTORS CORP.
  5. Remove the clip.

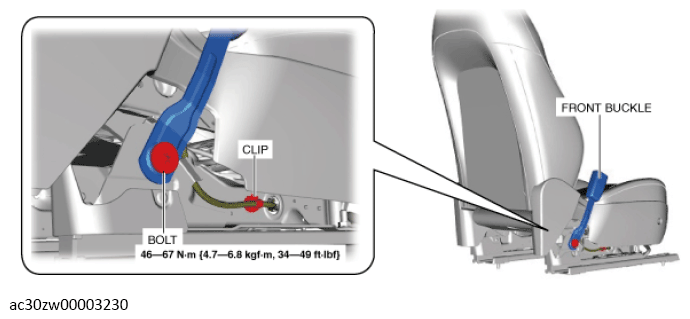

    Fig 1: Front Buckle Bolt With Torque Specification (Driver-Side, US/Canada)
    G13559536Courtesy of MAZDA MOTORS CORP.
  6. Remove the bolt.
  7. Remove the front buckle.
  8. Install in the reverse order of removal.
  9. Switch the ignition ON (engine off or on).
  10. Verify that the air bag/seat belt pre-tensioner system warning light illuminates for approx. 6 s and turns off.
    • If the air bag/seat belt pre-tensioner system warning light does not operate normally, refer to the onboard diagnostic system (air bag system) and perform inspection of the system. (See DTC INSPECTION .)
