Lower Panel Disassembly/Assembly (Us): Driver-side

  1. Disassemble in the order indicated in the table.

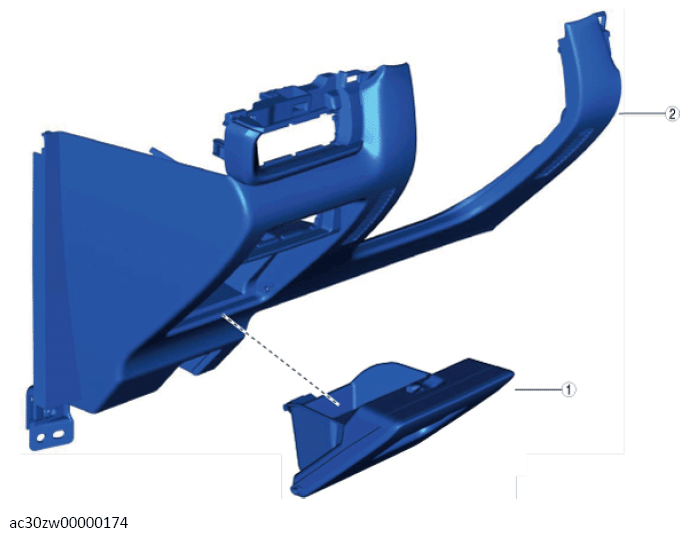

    G13750387
    PARTS DESCRIPTION

    1 Pocket
    2 Driver-side lower panel
  2. Assemble in the reverse order of disassembly.
