With Electric Parking Brake

  1. Disconnect the negative battery cable. (See NEGATIVE BATTERY CABLE DISCONNECTION/CONNECTION .)
  2. Remove the following parts:
    1. Console side panel (See CONSOLE SIDE PANEL REMOVAL/INSTALLATION .)
    2. Switch panel No. 2 (See SWITCH PANEL REMOVAL/INSTALLATION .)
    3. Selector lever knob (See AUTOMATIC TRANSAXLE SHIFT MECHANISM REMOVAL/INSTALLATION .)
    4. Shift panel (See SHIFT PANEL REMOVAL/INSTALLATION .)

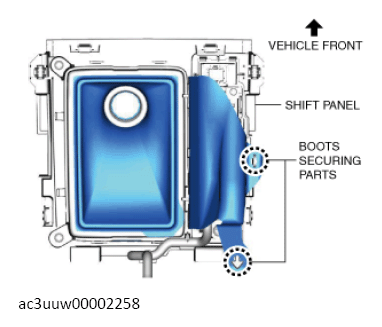

  3. Turn over the removed shift panel and remove the boots from the boots securing parts shown in the figure.
    G13149684Courtesy of MAZDA MOTORS CORP.

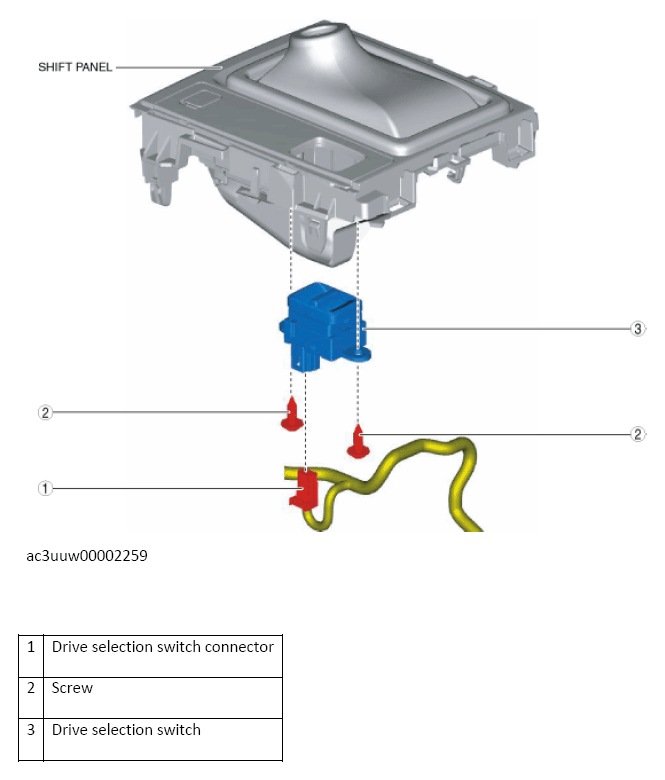

  4. Remove in the order indicated in the table.
  5. Install in the reverse order of removal.
G13149685Courtesy of MAZDA MOTORS CORP.
