Rear Differential Component Installation Note
WARNING: This page is about a different variant/trim than selected.

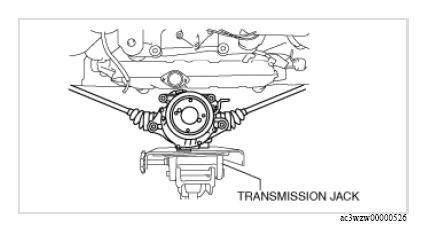

- Insert the rear drive shaft into the rear differential while raising the rear differential gradually.CAUTION:
- When raising the rear differential component, be careful not to damage the rear differential oil seal, rear drive shaft, and surrounding parts.

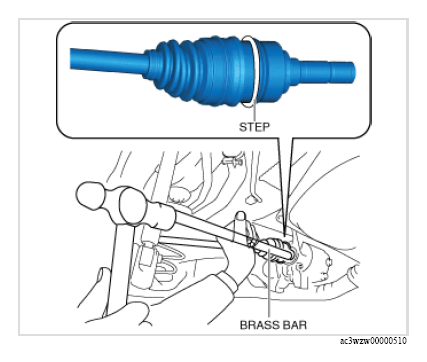

- Lightly tap the step of the rear drive shaft using a brass bar and hammer, and install the rear drive shaft to the rear differential.
- Temporarily tighten the rear differential installation bolts, stud bolt, washer and nut.
- Remove the transmission jack.
- Shake the rear differential forward and back/left and right to improve the installation fit of the rear differential.
- Tighten the rear differential installation bolts, stud bolt and nut completely.
