DTC B1D06-13: Turn Light (LH) Circuit Malfunction: Notes
WARNING: This page is about a different car, the 2016 Mazda CX-3. However, it is still accessible from the selected car via links, so may be relevant.
| Description |
Turn light (LH) circuit malfunction |
| Detection condition |
- BCM detects an open circuit or short to power supply in the turn light (LH) circuit with the ignition switched ON (engine off or on).
|
| Fail-safe |
Not applicable |
| Possible cause |
- BCM connector or terminal malfunction
- Front turn light bulb (LH) malfunction
- Front turn light (LH) connector or terminal malfunction

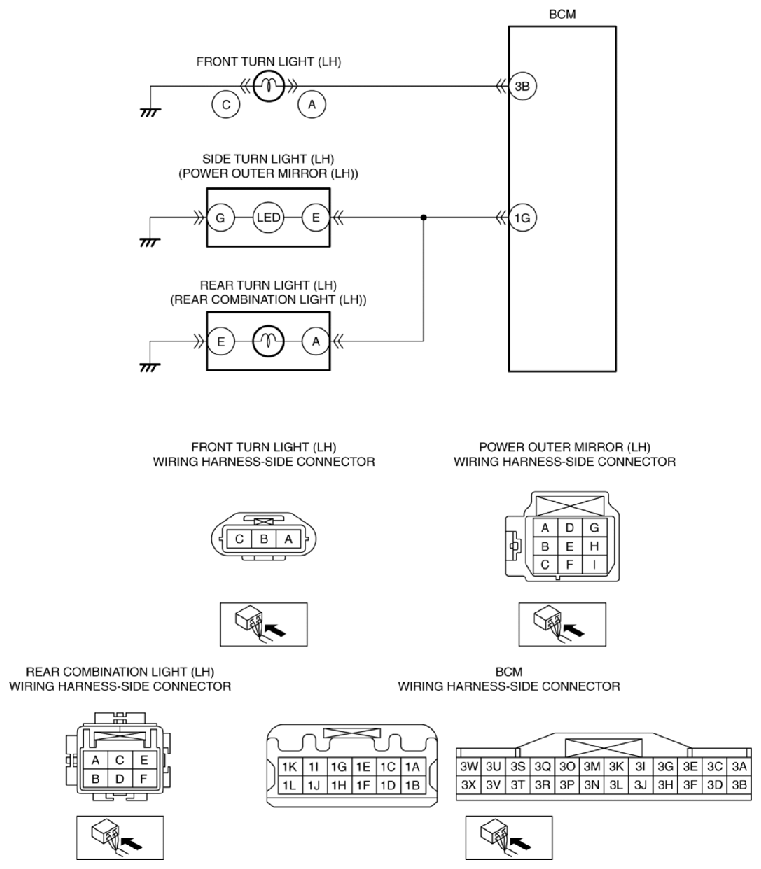

- Open circuit in wiring harness between front turn light (LH) terminal C and body ground
- Short to power supply in wiring harness between front turn light (LH) terminal A and BCM terminal 3B
- Open circuit in wiring harness between front turn light (LH) terminal A and BCM terminal 3B
- Rear turn light bulb (LH) malfunction
- Rear combination light (LH) connector or terminal malfunction
- Open circuit in wiring harness between rear combination light (LH) terminal E and body ground
- Power outer mirror (LH) connector or terminal malfunction
- Side turn light (LH) malfunction
- Open circuit in wiring harness between power outer mirror (LH) terminal G and body ground
- Short to power supply in wiring harness between the following terminals:
- Rear combination light (LH) terminal A-BCM terminal 1G
- Power outer mirror (LH) terminal E-BCM terminal 1G
- Open circuit in wiring harness between the following terminals:
- Rear combination light (LH) terminal A-BCM terminal 1G
- Power outer mirror (LH) terminal E-BCM terminal 1G
- BCM malfunction
|
|
|
