Center Panel Removal/Installation

WARNING: This page is about a different car, the 2016 Mazda CX-3. However, it is still accessible from the selected car via links, so may be relevant.

Open the glove compartment.
Affix protective tape to the shaded position shown in the figure.
CAUTION:
- If the remover tool is inserted without affixing protective tape, the passenger-side lower panel may be damaged. Always affix protective tape before inserting the remover tool to prevent damage.

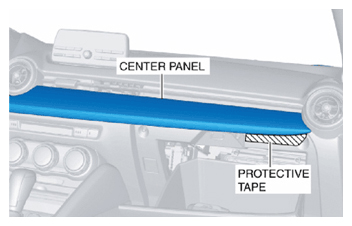

Fig 1: Applying Protective Tape To Center Panel
Courtesy of ABLE BODY CORP.
Insert the remover tool into the position shown in the figure and move it in the direction of arrow (1) shown in the figure.

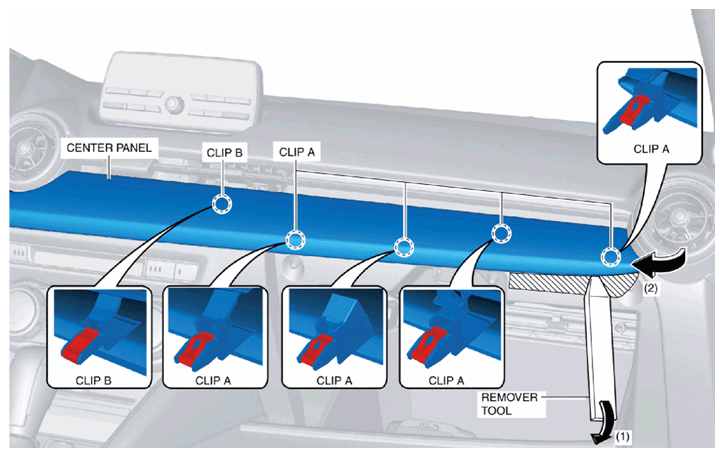

Fig 2: Inserting Remover Tool Into Center Panel
Courtesy of ABLE BODY CORP.
Move the center panel in the direction of arrow (2) shown in the figure and detach clips A and B.
Hold the shaded areas shown in the figure with your hands, pull the center panel in the direction of the arrow and detach the clips.

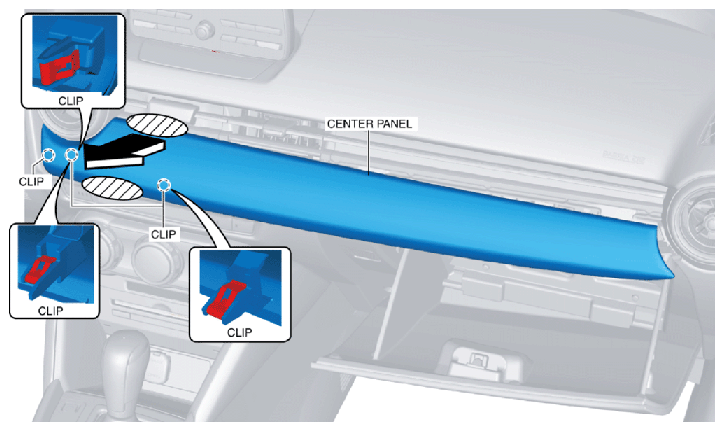

Fig 3: Pulling Center Panel
Courtesy of ABLE BODY CORP.
Remove the center panel.
Install in the reverse order of removal.
