Replacing Combiner

WARNING: This page is about a different car, the 2016 Mazda CX-3. However, it is still accessible from the selected car via links, so may be relevant.
  1. Refer to ACTIVE DRIVING DISPLAY INSPECTION  and stop the combiner at an angle of 10 degrees. (See ACTIVE DRIVING DISPLAY INSPECTION .)
  2. Switch the ignition off.
  3. Disconnect the negative battery cable. (See NEGATIVE BATTERY CABLE DISCONNECTION/CONNECTION .)
  4. Remove the following parts:
    1. Upper column cover (See COLUMN COVER REMOVAL/INSTALLATION .)
    2. Meter hood (See METER HOOD REMOVAL/INSTALLATION .)
    3. Instrument cluster (See INSTRUMENT CLUSTER REMOVAL/INSTALLATION .)

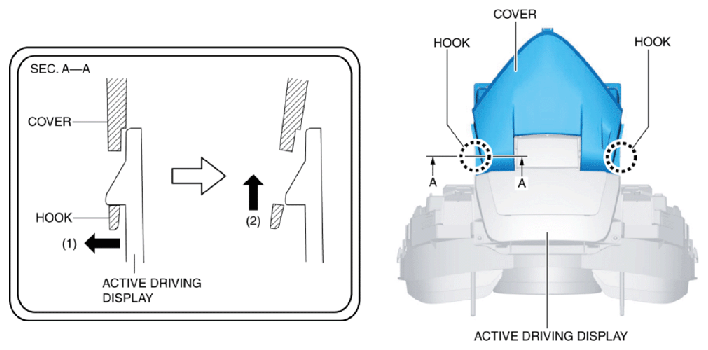

  5. Lift up the cover hook in the direction of arrow (1) shown in the figure, move it in the direction of arrow (2), and detach the cover hooks from the active driving display.
    Fig 1: Lifting Up Cover Hook
    G10915315Courtesy of MAZDA MOTORS CORP.

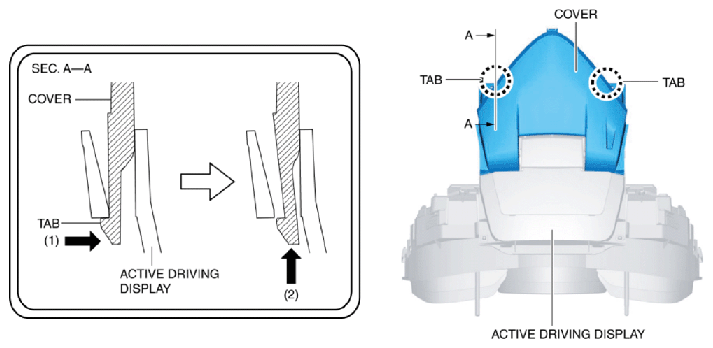

  6. Press the cover tab in the direction of arrow (1) shown in the figure, move it in the direction of arrow (2), and detach the cover tabs from the active driving display.
    Fig 2: Pressing Cover Tab
    G10915316Courtesy of MAZDA MOTORS CORP.
  7. Remove the cover.

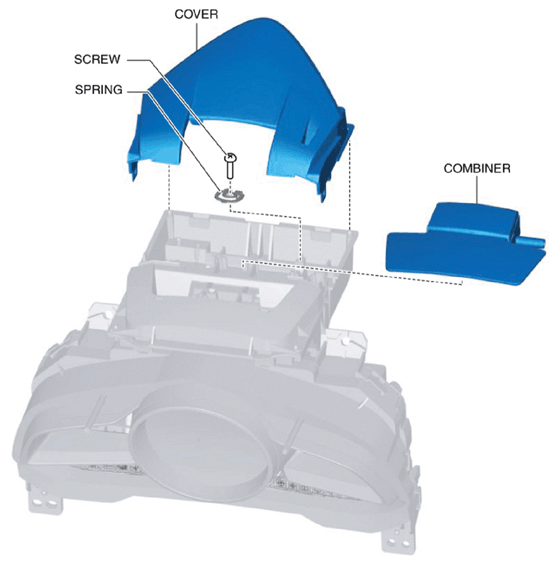

    Fig 3: Identifying Combiner, Cover And Spring
    G10915317Courtesy of MAZDA MOTORS CORP.
  8. Remove the screw.
  9. Remove the spring.
  10. Remove the combiner. (See Combiner assembly note .)
  11. Install in the reverse order of removal.
