Airflow Mode Actuator Removal/Installation (Auto A/C): Notes

WARNING: This page is about a different car, the 2016 Mazda CX-3. However, it is still accessible from the selected car via links, so may be relevant.

CAUTION:

If a non-specified grease is used, it may result in abnormal noise or an operation malfunction of the links. Use only a grease coating agent on each link and do not wipe off or add additional grease.

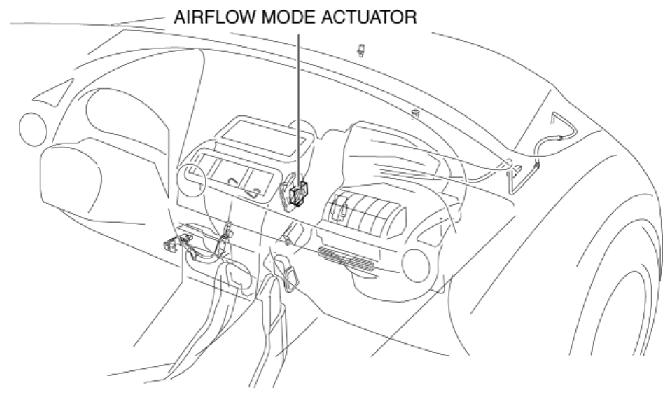

Fig 1: Identifying Airflow Mode Actuator (Full-Auto Air Conditioner)

Courtesy of MAZDA MOTORS CORP.

Disconnect the negative battery cable. (See NEGATIVE BATTERY CABLE DISCONNECTION/CONNECTION .)
Remove the glove compartment. (See GLOVE COMPARTMENT REMOVAL/INSTALLATION .)
Disconnect the airflow mode actuator connector.

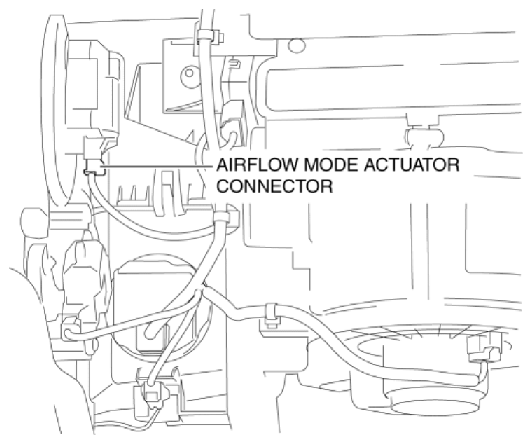

Fig 2: Identifying Airflow Mode Actuator Connector
Courtesy of MAZDA MOTORS CORP.
Remove the screws.

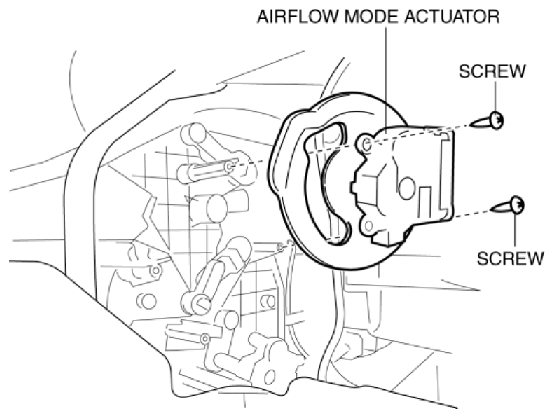

Fig 3: Removing Airflow Mode Actuator Screws
Courtesy of MAZDA MOTORS CORP.
Remove the airflow mode actuator.
Remove the airflow mode main link.

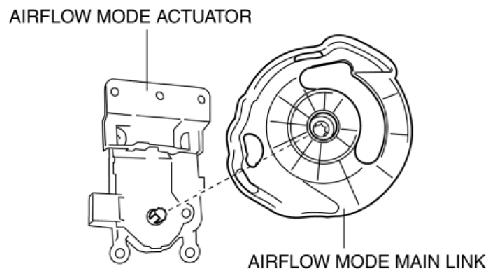

Fig 4: Removing Airflow Mode Main Link
Courtesy of MAZDA MOTORS CORP.
Remove the bracket.

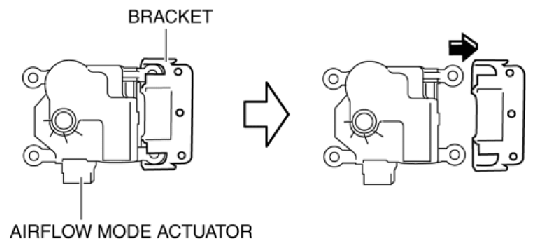

Fig 5: Removing Airflow Mode Actuator Bracket
Courtesy of MAZDA MOTORS CORP.
Install in the reverse order of removal. (See AIRFLOW MODE MAIN LINK INSTALLATION NOTE .)
