No. 3 Engine Mount Removal Note

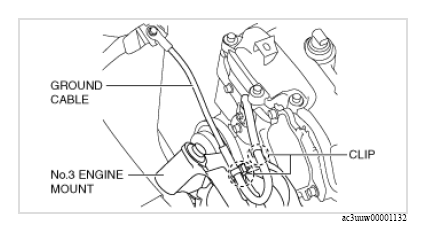

- Remove the clips shown in the figure and set the ground cable aside.

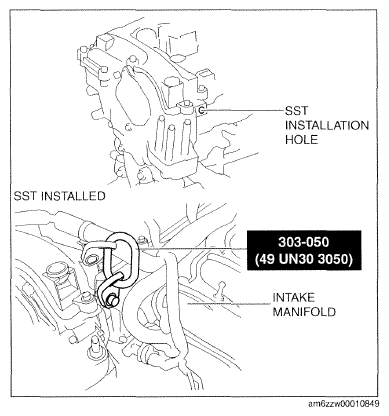

- Install the SST and the following bolt to the position shown in the figure.
Bolt:
part number 99794 1025 or an M10 x 1.25, length 25 mm {0.98 in}
Tightening torque
38-52 N.m {3.9-5.3 kgf.m, 29-38 ft.lbf}
CAUTION:- Slots have been adopted for the No. 3 engine mount installation holes. If the No. 3 engine mount is deviated from the original position when installing the No. 3 engine mount, engine noise or vibration could increase. Before removing the No. 3 engine mount, place alignment marks on the No. 3 engine mount and body so that they can be assembled to the same positions as before removal.

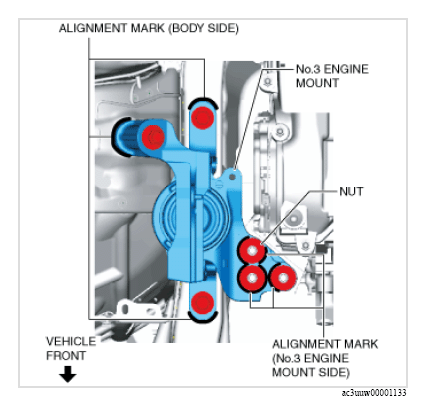

- Place alignment marks on the locations shown in the figure so that they can be assembled to the same positions as before removal.NOTE:
- Paint so that the No. 3 engine mount is framed on the body side and the outline of the nut is framed on the No. 3 engine mount side.

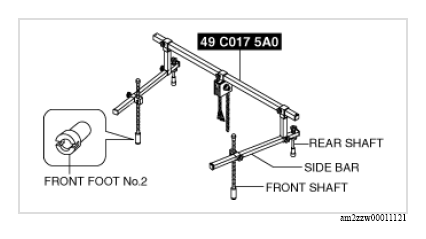

- Install the SST using the following procedures.CAUTION:
- Refer to the SST instruction service information for the basic handing procedure.
NOTE:- Install front foot No. 2 to the left and right front shafts of the SST.

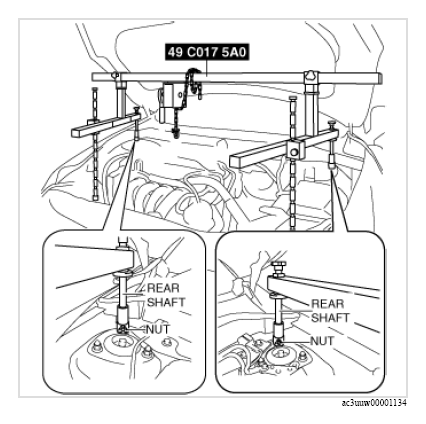

- As shown in the figure, set the rear shafts of the SST to the left and right shock absorber nuts.

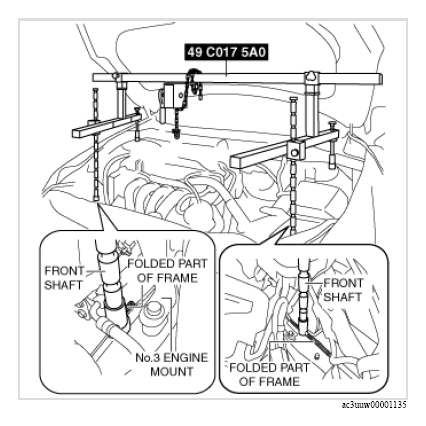

- Set the front shafts of the SST as shown in the figure.

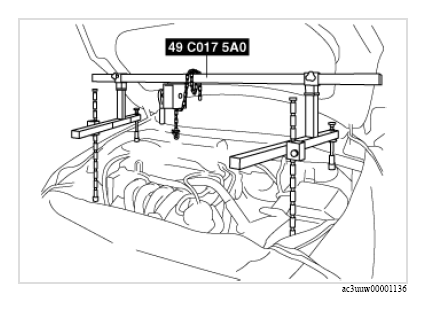

- Adjust the height of the left and right side bars of the SST so that they are leveled, then tighten each part.
- Apply tension to the chain to hold the engine.
- Remove the No. 3 engine mount.
