Radiator Removal Note

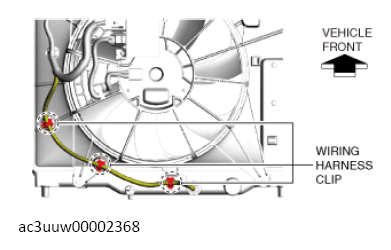

  1. Remove the wiring harness clips shown in the figure. (if equipped)
    G13149351Courtesy of MAZDA MOTORS CORP.
  2. To prevent damage to the radiator core, protect it by covering the radiator surface with cardboard.
  3. Lift the radiator and remove it from the radiator installation holes on the shroud panel.

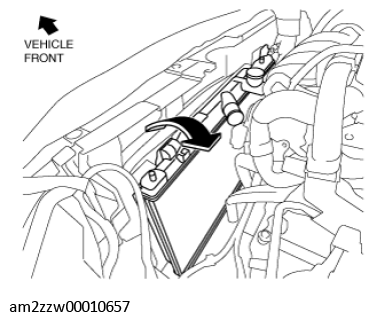

  4. Move the radiator and condenser to the engine side.
    G11435646Courtesy of MAZDA MOTORS CORP.
  5. Remove the four bolts securing the condenser to the radiator.

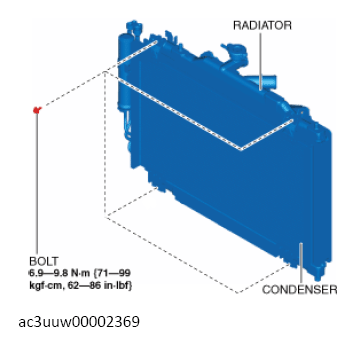

    Fig 1: Condenser To Radiator Bolts With Torque Specification
    G13149353Courtesy of MAZDA MOTORS CORP.
  6. Remove the radiator from above the engine compartment.
