Center Display Removal/Installation

  1. Disconnect the negative battery cable. (See NEGATIVE BATTERY CABLE DISCONNECTION/CONNECTION .)
  2. Remove the audio panel No. 2. (See AUDIO PANEL NO. 2 REMOVAL/INSTALLATION .)
  3. Remove the audio panel No. 1. (See AUDIO PANEL NO. 1 REMOVAL/INSTALLATION .)
  4. Remove the bolts.

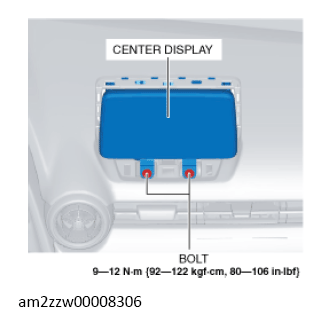

    Fig 1: Center Display And Bolts With Torque Specification
    G13153252Courtesy of MAZDA MOTORS CORP.

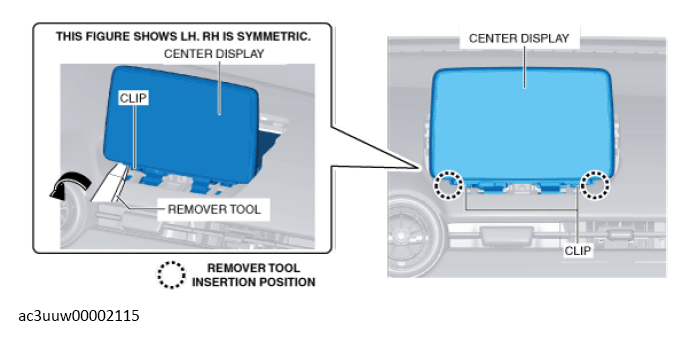

  5. Insert the remover tool into the position shown in the figure.
    G13153253Courtesy of MAZDA MOTORS CORP.
  6. Move the remover tool in the direction of the arrow shown in the figure and detach the center display clips from the dashboard.

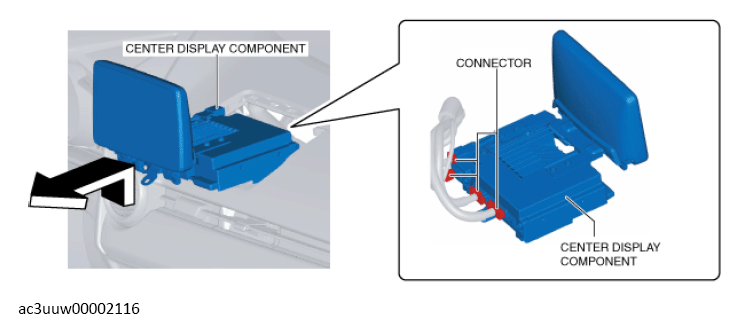

  7. Pull out the center display component in the direction of the arrow shown in the figure and disconnect it.
    G13153254Courtesy of MAZDA MOTORS CORP.
  8. Remove the center display component.
  9. Remove the connectivity master unit (CMU). (See CONNECTIVITY MASTER UNIT (CMU) REMOVAL/INSTALLATION .)
  10. Install in the reverse order of removal.
