Audio Unit Removal/Installation

  1. Disconnect the negative battery cable. (See NEGATIVE BATTERY CABLE DISCONNECTION/CONNECTION .)
  2. Remove the audio panel No. 2. (See AUDIO PANEL NO. 2 REMOVAL/INSTALLATION .)
  3. Remove the audio panel No. 1. (See AUDIO PANEL NO. 1 REMOVAL/INSTALLATION .)

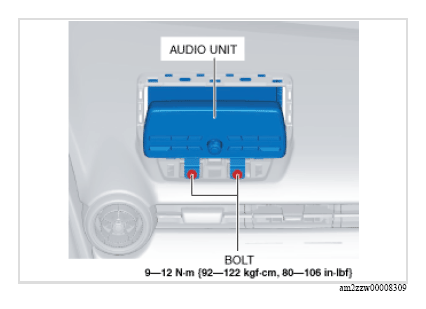

  4. Remove the bolts.
    Fig 1: Audio Unit And Bolts With Torque Specification
    G13153228Courtesy of MAZDA MOTORS CORP.

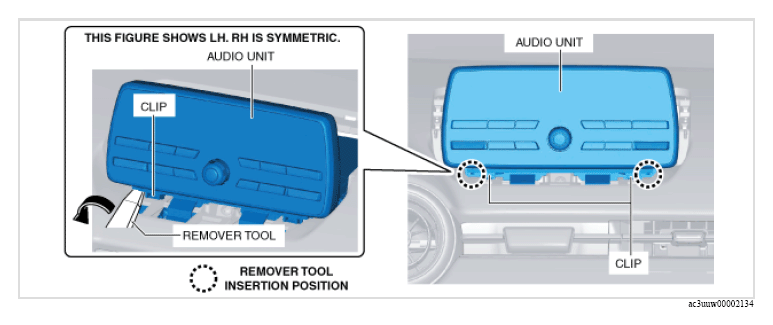

  5. Insert the remover tool into the position shown in the figure.
    G13153229Courtesy of MAZDA MOTORS CORP.
  6. Move the remover tool in the direction of the arrow shown in the figure and detach the audio unit clips from the dashboard.

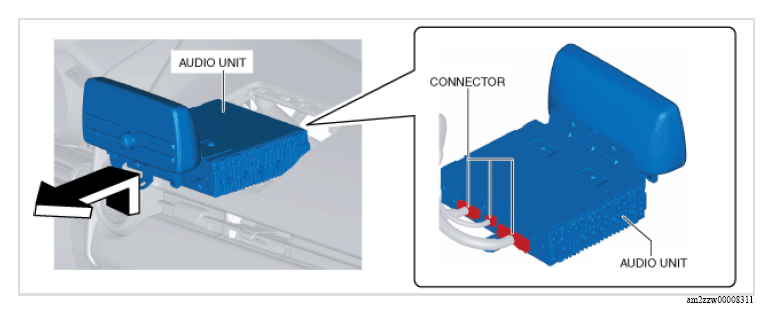

  7. Pull out the audio unit in the direction of the arrow shown in the figure and disconnect it.
    G13153230Courtesy of MAZDA MOTORS CORP.
  8. Remove the audio unit.
  9. Install in the reverse order of removal.
