Indicator Removal/Installation (With Electric Parking Brake): Notes

1. Disconnect the negative battery cable. (See NEGATIVE BATTERY CABLE DISCONNECTION/CONNECTION .)
2. Remove the following parts:
   1. Console side panel (See CONSOLE SIDE PANEL REMOVAL/INSTALLATION .)
   2. Switch panel No. 2 (See SWITCH PANEL REMOVAL/INSTALLATION .)
   3. Selector lever knob (See Selector Lever Component Removal/Installation .)
   4. Shift panel (See SHIFT PANEL REMOVAL/INSTALLATION .)

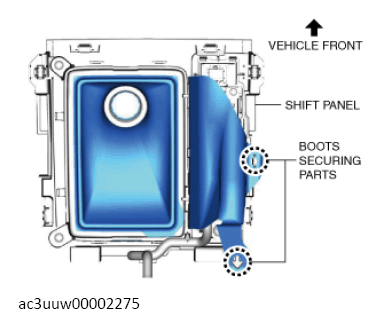

3. Turn over the removed shift panel and remove the boots from the boots securing parts shown in the figure.

Courtesy of MAZDA MOTORS CORP.

Courtesy of MAZDA MOTORS CORP.

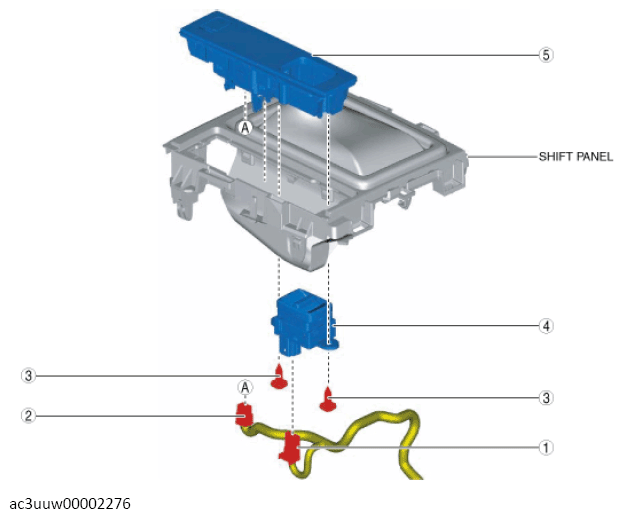

COMPONENT DESCRIPTION

1	Drive selection switch connector
2	Indicator connector
3	Screw
4	Drive selection switch
5	Indicator (See Indicator removal note (with electric parking brake) .)
