Manual 7th

Courtesy of MAZDA MOTORS CORP.

Climate control unit terminal

• Climate control unit type A: Q (+)-body ground (-)
• Climate control unit type B: G (+)-body ground (-)

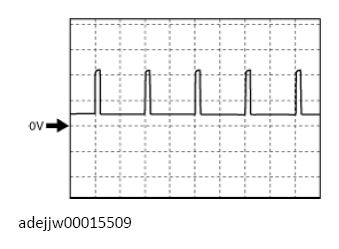

Oscilloscope setting

• 5 V/DIV (Y), 1 ms/DIV (X), DC range

Vehicle condition

• Switch the ignition ON (engine off or on)
• Airflow mode: VENT
• Air intake mode: RECIRCULATE
