Air Intake Actuator Removal/Installation (Auto A/C): Notes

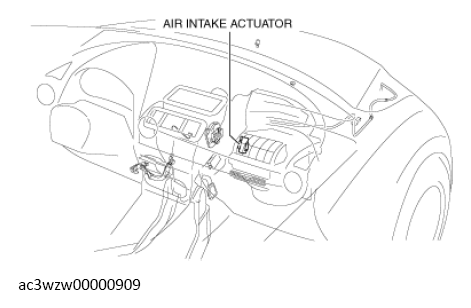

Installation position

Courtesy of MAZDA MOTORS CORP.

CAUTION:

• If a non-specified grease is used, it may result in abnormal noise or an operation malfunction of the links. Use only a grease coating agent on each link and do not wipe off or add additional grease.
