Front Drive Shaft Removal/Installation: Notes

WARNING: This page is about a different car, the 2016 Mazda CX-3. However, it is still accessible from the selected car via links, so may be relevant.

CAUTION:

Performing the following procedures could cause an open circuit in the front ABS wheel-speed sensor wiring harness if it is pulled by mistake. Before servicing, disconnect the front ABS wheel-speed sensor and set it aside so that the wiring harness will not be pulled by mistake.

Remove the front ABS wheel-speed sensor from the steering knuckle.

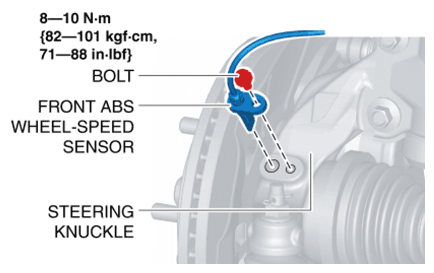

Fig 1: Identifying Front ABS Wheel-Speed Sensor
Courtesy of MAZDA MOTORS CORP.
Remove the front ABS wheel-speed sensor wiring harness from the front shock absorber and set it aside so that it does not interfere with the servicing.

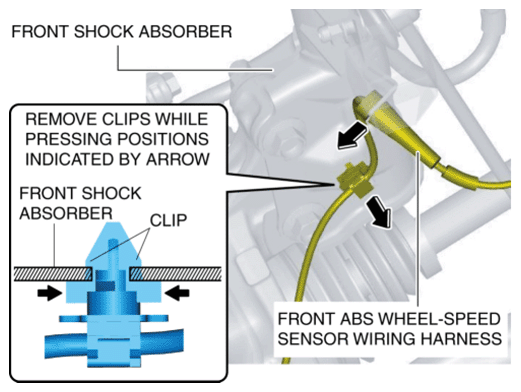

Fig 2: Removing Front ABS Wheel-Speed Sensor Wiring Harness
Courtesy of MAZDA MOTORS CORP.
Remove front under cover No. 2. (See FRONT UNDER COVER No. 2 REMOVAL/INSTALLATION .)
Remove the front splash shield. (See FRONT SPLASH SHIELD REMOVAL/INSTALLATION .)
Drain the ATF. (See AUTOMATIC TRANSAXLE FLUID (ATF) REPLACEMENT [EW6A-EL/EW6AX-EL] .)
Remove in the order shown in the figure.
Install in the reverse order of removal.
Refill the ATF. (See AUTOMATIC TRANSAXLE FLUID (ATF) REPLACEMENT [EW6A-EL/EW6AX-EL] .)

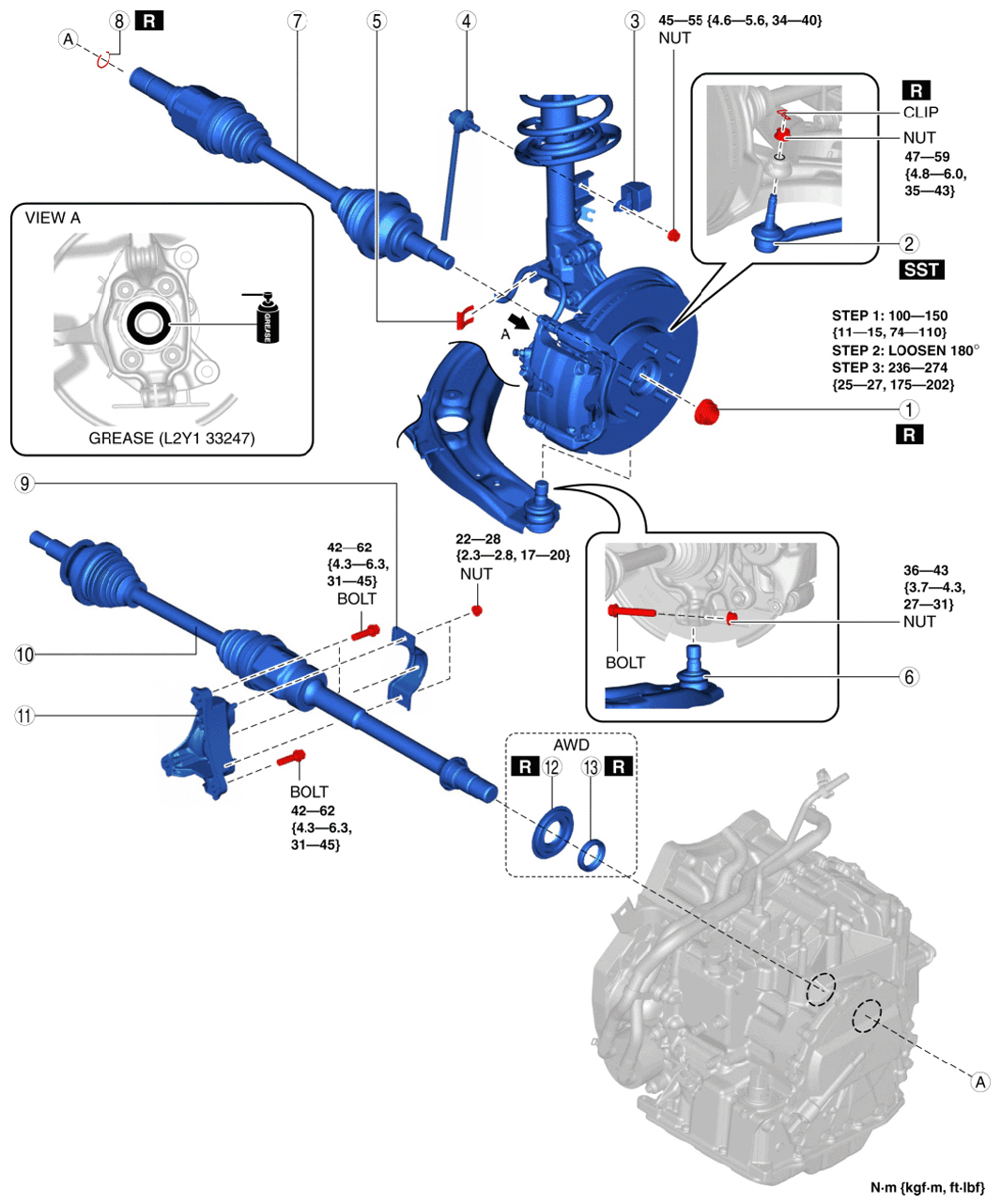

Fig 3: Front Drive Shaft Components With Torque Specifications

Courtesy of MAZDA MOTORS CORP.

COMPONENT DESCRIPTION

1	Locknut (See Locknut Installation Note .)
2	Tie-rod end (See TIE-ROD END REPLACEMENT .)
3	Dynamic damper (With dynamic damper)
4	Stabilizer control link
5	Brake hose clip
6	Front lower arm ball joint (See FRONT LOWER ARM REMOVAL/INSTALLATION .)
7	Front drive shaft (LH) (See Front Drive Shaft Removal Note .) (See Front Drive Shaft (LH) Installation Note .)
8	Front drive shaft clip (See Front Drive Shaft Clip Installation Note .)
9	Bracket No. 2 (See Bracket, Front Drive Shaft (RH) Installation Note .)
10	Front drive shaft (RH) (See Front Drive Shaft Removal Note .) (See Bracket, Front Drive Shaft (RH) Installation Note .)
11	Bracket No. 1 (See Bracket, Front Drive Shaft (RH) Installation Note .)
12	Transfer oil seal (RH) No. 1 (See TRANSFER OIL SEAL REPLACEMENT [EW6AX-EL] .)
13	Transfer oil seal (RH) No. 3 (See TRANSFER OIL SEAL REPLACEMENT [EW6AX-EL] .)
