Oil Pump Driven Sprocket Removal Note

WARNING: This page is about a different car, the 2016 Mazda CX-3. However, it is still accessible from the selected car via links, so may be relevant.
  1. Temporarily assemble the crankshaft pulley lock bolt, and lock the oil pump against rotation as shown in the figure.

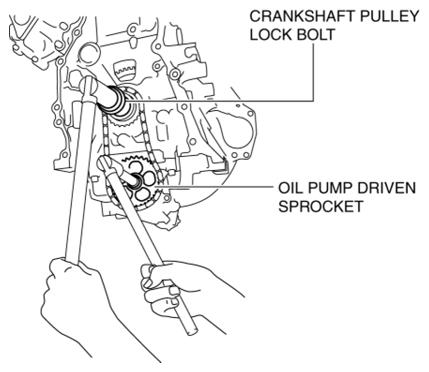

    Fig 1: Removing Crankshaft Pulley Lock Bolt
    G10968573Courtesy of MAZDA
  2. Remove the oil pump driven sprocket.
  3. Remove the temporarily assembled crankshaft pulley lock bolt.
