Front Oil Seal Installation Note
WARNING: This page is about a different car, the 2016 Mazda CX-3. However, it is still accessible from the selected car via links, so may be relevant.
- Apply clean engine oil to the inner surface of a new front oil seal.
- Insert the front oil seal into the engine front cover by hand.

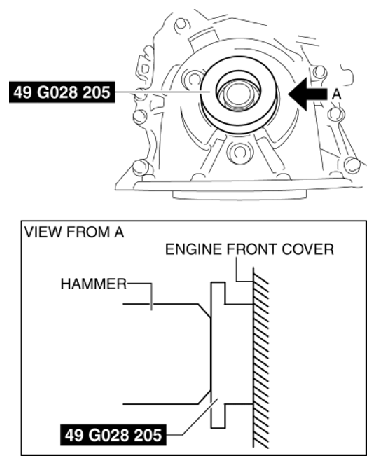

- Tap the oil seal in evenly using the SST
and a hammer.

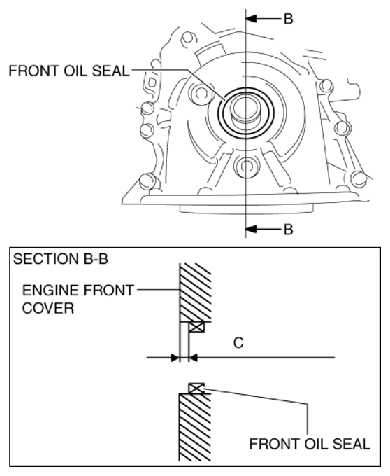

Front oil seal press on amount C
- 0-1.0 mm {0-0.039 in} from engine front cover
