Drive Belt Auto TENSIONER Removal/Installation: Notes
WARNING: This page is about a different car, the 2016 Mazda CX-3. However, it is still accessible from the selected car via links, so may be relevant.
WARNING:
- A hot engine can cause severe burns. Turn off the engine and wait until it is cool before servicing.
CAUTION:
- If the rubber part of the drive belt auto tensioner is damaged by a screwdriver or other tool, oil in the hydraulic pressure unit could leak and the tensioner may not operate normally. Be careful not to damage the rubber part of the drive belt auto tensioner.
- Remove the plug hole plate. (Refer to PLUG HOLE PLATE REMOVAL/INSTALLATION .)
- Remove the generator drive belt. (Refer to DRIVE BELT REMOVAL/INSTALLATION .)

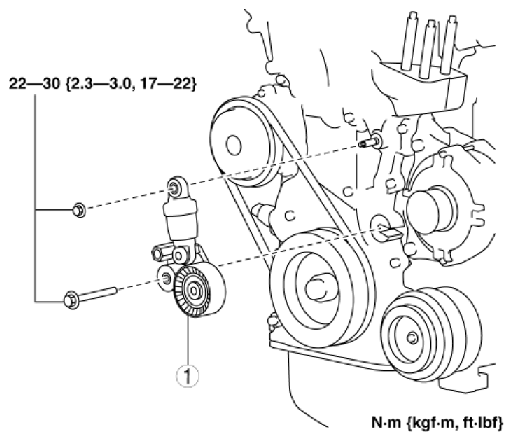

- Remove in the order indicated in the table.
- Install in the reverse order of removal.
