Rocker Arm Installation Note

WARNING: This page is about a different car, the 2016 Mazda CX-3. However, it is still accessible from the selected car via links, so may be relevant.

Apply engine oil to the HLAs and the end of the valve stems.

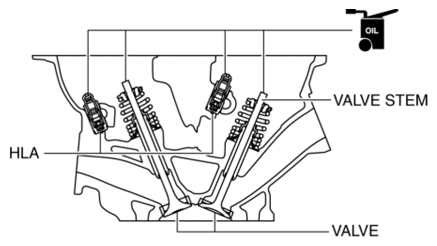

Fig 1: Applying Engine Oil To HLAS And End Of Valve Stems
Courtesy of MAZDA
Install the rocker arms to the same positions as before removal.
