Front Door Hinge Removal/Installation

WARNING: This page is about a different car, the 2016 Mazda CX-3. However, it is still accessible from the selected car via links, so may be relevant.

Disconnect the negative battery cable. (See NEGATIVE BATTERY CABLE DISCONNECTION/CONNECTION .)
Remove the following parts:
1. Front over fender (See FRONT OVER FENDER REMOVAL/INSTALLATION .)
2. Front bumper (See FRONT BUMPER REMOVAL .) (See FRONT BUMPER INSTALLATION .)
3. Front combination light (See FRONT COMBINATION LIGHT REMOVAL/INSTALLATION .)
4. Front bumper slider (See FRONT BUMPER SLIDER REMOVAL/INSTALLATION .)
5. Front fender molding (See FRONT FENDER MOLDING REMOVAL/INSTALLATION .)
6. Front fender panel (See FRONT FENDER PANEL REMOVAL/INSTALLATION .)
7. Front door (See FRONT DOOR REMOVAL/INSTALLATION .)
Remove the bolts.

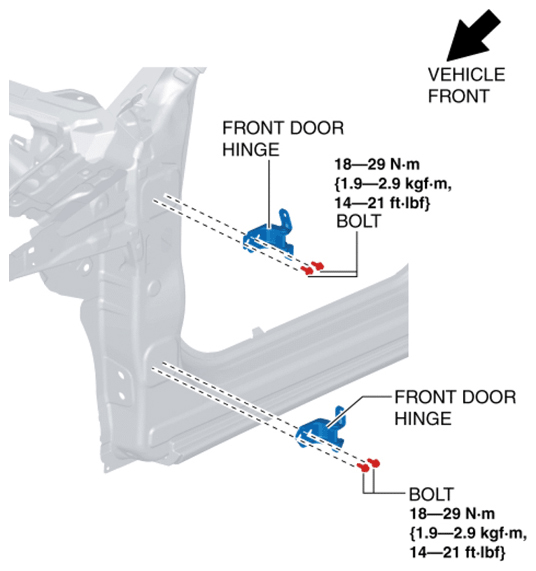

Fig 1: Identifying Front Door Hinge And Bolts With Torque Specification
Courtesy of MAZDA MOTORS CORP.
Remove the front door hinge.
Install in the reverse order of removal.
Adjust the front door. (See DOOR ADJUSTMENT .)
