Heated Outer Mirror Inspection
WARNING: This page is about a different car, the 2016 Mazda CX-3. However, it is still accessible from the selected car via links, so may be relevant.
- Disconnect the negative battery cable. (Refer to NEGATIVE BATTERY CABLE DISCONNECTION/CONNECTION .)
- Remove the following parts:
- Power window main switch (Driver-side) (Refer to POWER WINDOW MAIN SWITCH REMOVAL/INSTALLATION .)
- Power window subswitch (Passenger-side) (Refer to POWER WINDOW SUBSWITCH REMOVAL/INSTALLATION .)
- Front door trim (Refer to FRONT DOOR TRIM REMOVAL/INSTALLATION .)
- Outer mirror glass (Refer to OUTER MIRROR GLASS REMOVAL .) (Refer to OUTER MIRROR GLASS INSTALLATION .)

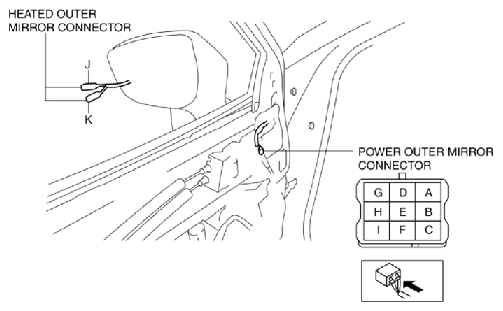

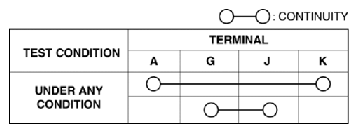

- Verify that the continuity between heated outer mirror connector terminals is as indicated in the table.
Courtesy of MAZDA MOTORS CORP.
- If not as indicated in the table, replace the power outer mirror. (Refer to POWER OUTER MIRROR REMOVAL/INSTALLATION .)
