Steering Lock Function Does Not Operate [Security And Locks]: Notes

WARNING: This page is about a different car, the 2016 Mazda CX-3. However, it is still accessible from the selected car via links, so may be relevant.

Description	Switch the ignition from ON (engine off or on) to OFF and do not lock the steering when opening/closing the door.

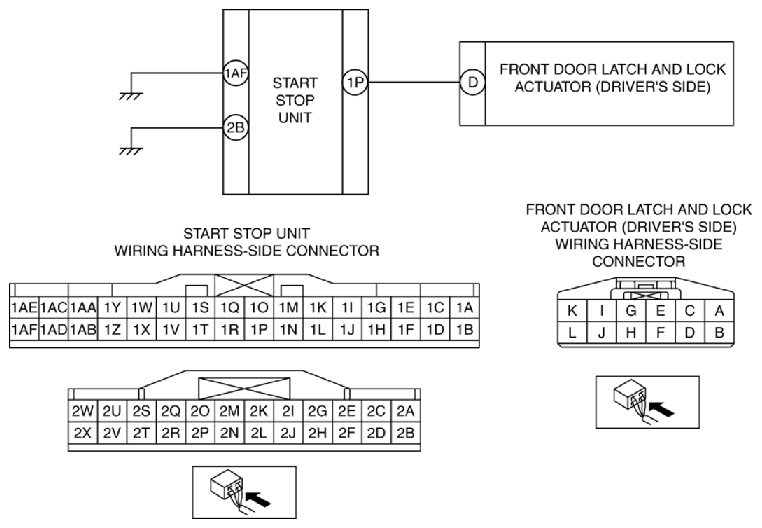

Possible Causes	Open circuit in wiring harness between the following terminals: Start stop unit terminal 1P and front door lock link switch (driver's side) terminal D Start stop unit terminal 1AF and ground Start stop unit terminal 2B and ground Short to ground in wiring harness between start stop unit terminal 1P and front door lock link switch (driver's side) terminal D
