Push Button Start System Does Not Operate [Security And Locks]: Notes

WARNING: This page is about a different car, the 2016 Mazda CX-3. However, it is still accessible from the selected car via links, so may be relevant.
Description  When the push button start is pressed, the ignition cannot be switched to ACC or ON (engine off).
Possible Causes
  • Fuse malfunction
  • Customer mis-operation or misunderstanding

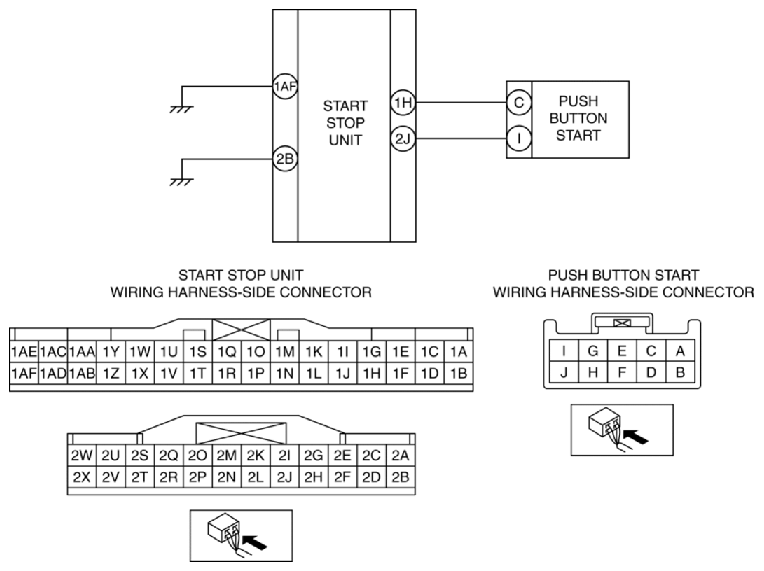

  • Open circuit in wiring harness between the following terminals:
    • Start stop unit terminal 1H and push button start terminal C
    • Start stop unit terminal 2J and push button start terminal I
    • Start stop unit terminal 1AF and ground
    • Start stop unit terminal 2B and ground
G10913878
