Answer-Back Buzzer Does Not Sound [Security And Locks]: Notes
WARNING: This page is about a different car, the 2016 Mazda CX-3. However, it is still accessible from the selected car via links, so may be relevant.
| Description |
The keyless beeper does not sound when door lock/unlock operation is performed using the remote transmitter button. |
| Possible Causes |
- Keyless beeper malfunction

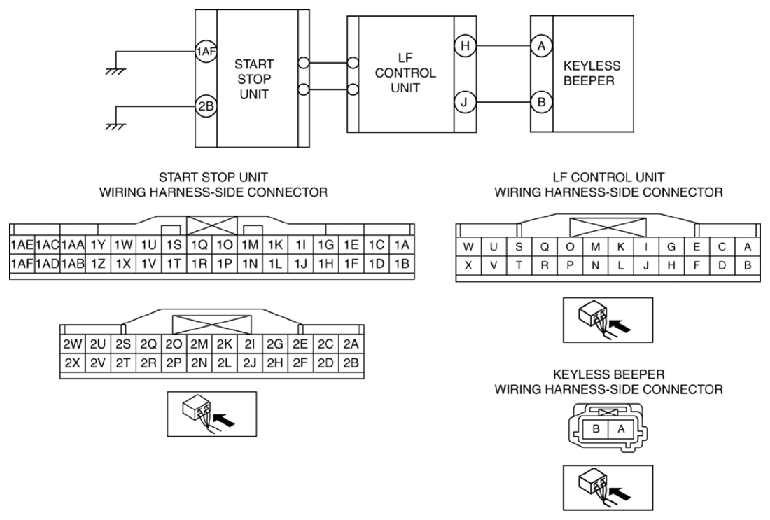

- Short to power supply in wiring harness between the following terminals:
- Keyless beeper terminal A and LF control unit terminal H
- Keyless beeper terminal B and LF control unit terminal J
- Short to ground in wiring harness between the following terminals:
- Keyless beeper terminal A and LF control unit terminal H
- Keyless beeper terminal B and LF control unit terminal J
- Open circuit in wiring harness between the following terminals:
- Keyless beeper terminal A and LF control unit terminal H
- Keyless beeper terminal B and LF control unit terminal J
- Start stop unit terminal 1AF and ground
- Start stop unit terminal 2B and ground
- Personalization feature not set
|
|
|
