Advanced Keyless Entry System Does Not Operate [Security And Locks]: Notes
WARNING: This page is about a different car, the 2016 Mazda CX-3. However, it is still accessible from the selected car via links, so may be relevant.
| Description |
- The door locking operation using the door request switch is not possible.
- The liftgate/trunk lid cannot be open using the liftgate/trunk lid opener switch.
|
| Possible Causes |
- Liftgate/trunk lid opener switch malfunction

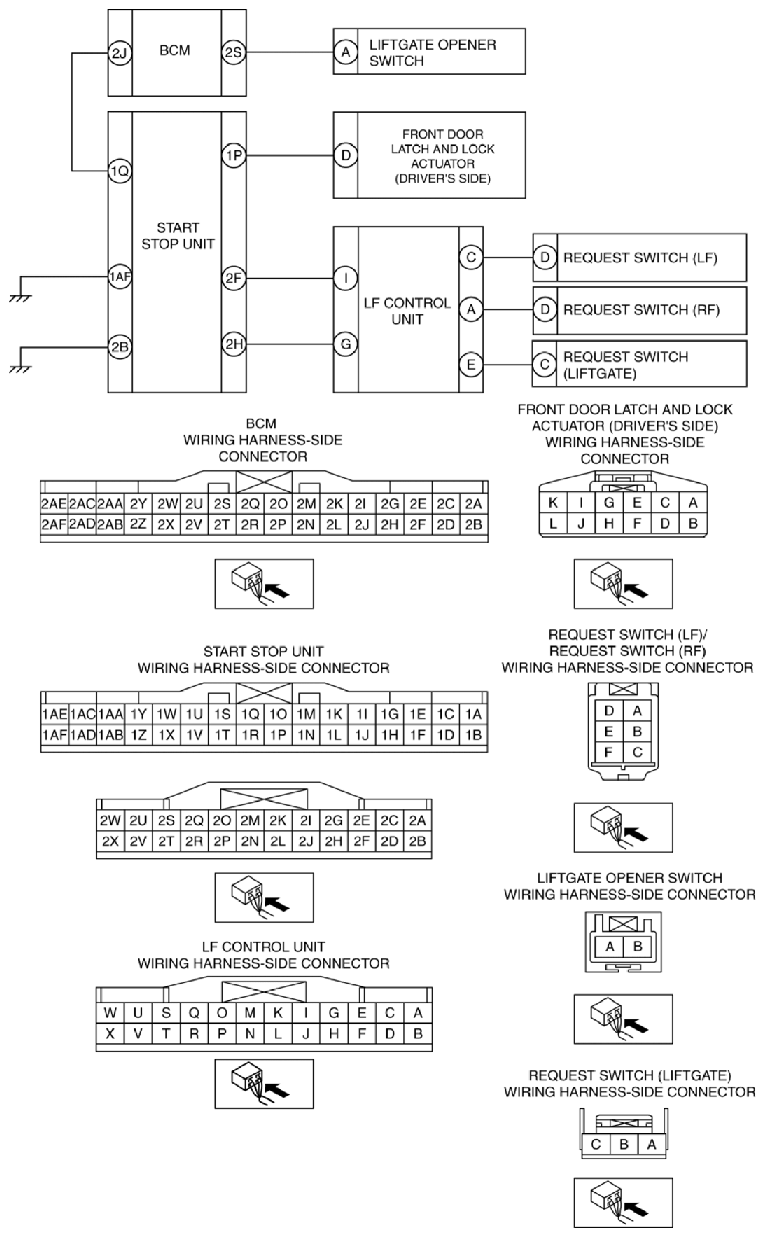

- Open circuit in wiring harness between the following terminals:
- BCM terminal 2S and liftgate opener switch terminal A
- LF control unit terminal C and request switch (LF) terminal D
- LF control unit terminal A and request switch (RF) terminal D
- Start stop unit terminal 1P and door lock link switch (driver's side) terminal D
- Start stop unit terminal 1AF and ground
- Start stop unit terminal 2B and ground
- Short to ground in wiring harness between start stop unit terminal 1P and door lock link switch (driver's side) terminal D
- Connector poor contact or terminal damage
- Customer's mis-operation or misunderstanding
|
|
|
