DTC P0850-23: Transaxle Range Sensor Circuit Malfunction: Notes
WARNING: This page is about a different car, the 2016 Mazda CX-3. However, it is still accessible from the selected car via links, so may be relevant.
| Description |
Transaxle range sensor circuit malfunction |
| Detection condition |
- The start stop unit detected the following condition 5 times
continuously with the ignition switched ON (engine off or on).
- A transaxle range sensor signal is in the P or N position for a continuous 1 s or more
even though the TCM CAN signal is in a position other than the P and N positions.
|
| Fail-safe |
- Perform control of the internal signal for control of the transaxle range sensor as position other than P, N positions.
|
| Possible cause |
- DTCs are stored in the TCM.
- Start stop unit connector or terminal malfunction
- TCM connector or terminal malfunction

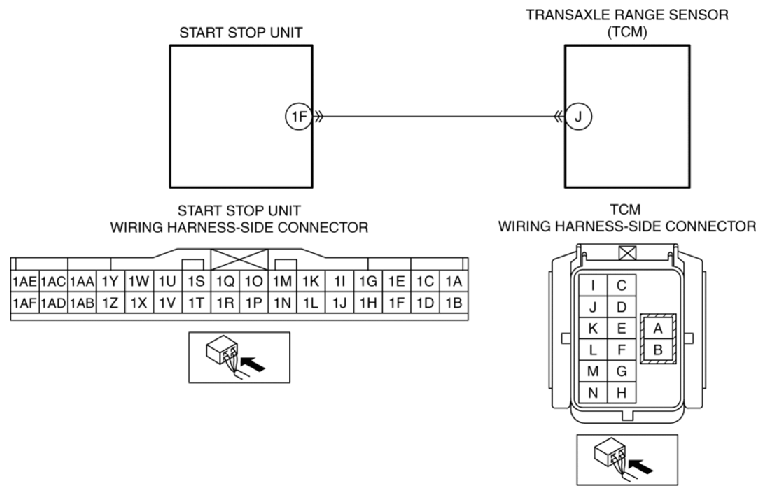

- Short to ground in wiring harness between start stop unit terminal 1F and TCM terminal J
- Open circuit in wiring harness between start stop unit terminal 1F and TCM terminal J
- Transaxle range sensor malfunction
- Start stop unit malfunction
|
|
|
