Troubleshooting Procedure

WARNING: This page is about a different car, the 2016 Mazda CX-3. However, it is still accessible from the selected car via links, so may be relevant.

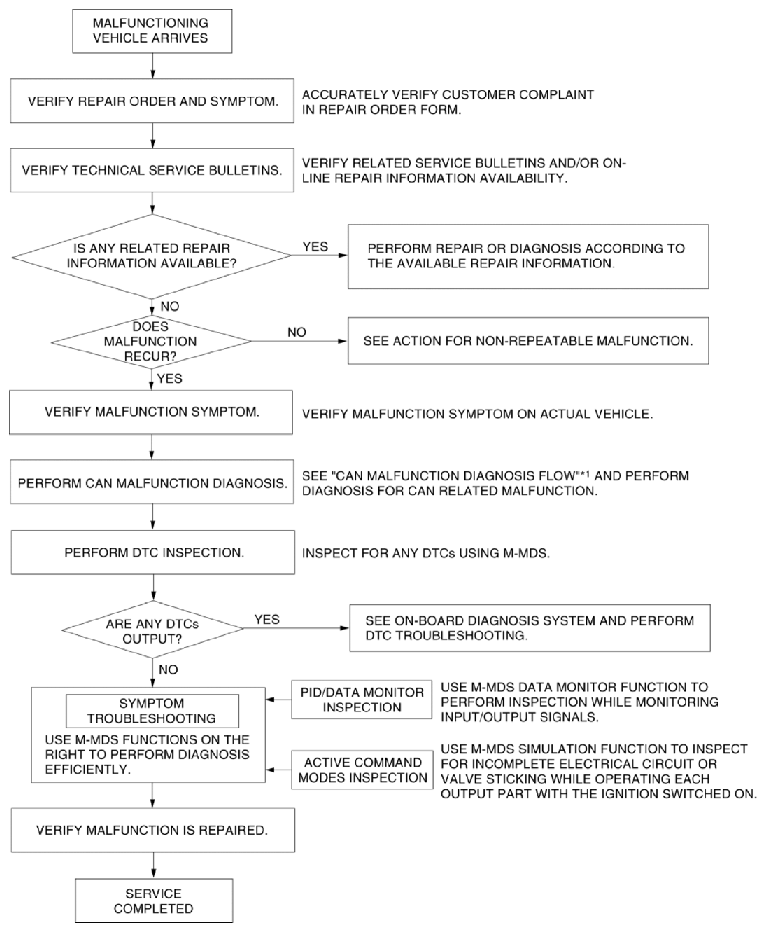

Fig 1: BCM Troubleshooting Chart
G10913656Courtesy of MAZDA
