Action for Non-repeatable Malfunction

WARNING: This page is about a different car, the 2016 Mazda CX-3. However, it is still accessible from the selected car via links, so may be relevant.

If the malfunction does not recur, verify the malfunction cause by performing the following actions:
- Based on the repair order form, attempt to drive the vehicle or perform tests to replicate the malfunction, record the data at that time, and detect the malfunction cause.
- Shake the wiring harness or connector of the electrical component which is suspected to be the cause of the malfunction, and inspect for malfunction or occurrence of any DTCs.

  Fig 1: Checking Electrical Component Wiring Harness
  Courtesy of MAZDA MOTORS CORP.
- Inspect the female terminals on the connector of the electric component which is suspected to be the cause of the malfunction for poor connection.

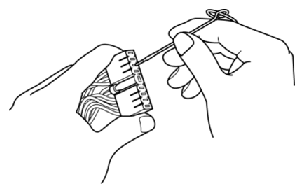

Fig 2: Inspecting Electrical Component Female Terminals
Courtesy of MAZDA MOTORS CORP.
