Rear Heat Duct Removal/Installation: Driver-Side

WARNING: This page is about a different car, the 2016 Mazda CX-3. However, it is still accessible from the selected car via links, so may be relevant.
  1. Slide the front seat rearward.
  2. Disconnect the negative battery cable. (See NEGATIVE BATTERY CABLE DISCONNECTION/CONNECTION .)
  3. Remove the following parts:
    1. Driver-side front scuff plate (See FRONT SCUFF PLATE REMOVAL/INSTALLATION .)
    2. Driver-side front side trim (See FRONT SIDE TRIM REMOVAL/INSTALLATION .)
    3. Driver-side side wall (See SIDE WALL REMOVAL/INSTALLATION .)
    4. Joint cover (See STEERING WHEEL AND COLUMN REMOVAL/INSTALLATION .)
    5. Accelerator pedal (See ACCELERATOR PEDAL REMOVAL/INSTALLATION .)
  4. Remove the fastener.

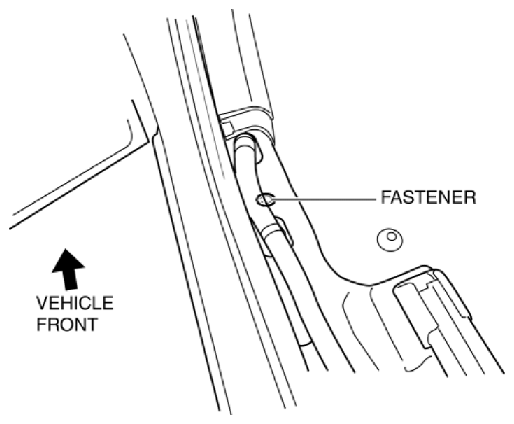

    Fig 1: Removing Rear Heat Duct Fastener (Driver-Side)
    G10910238Courtesy of MAZDA MOTORS CORP.
  5. Turn the floor covering over.
  6. Remove the fastener.

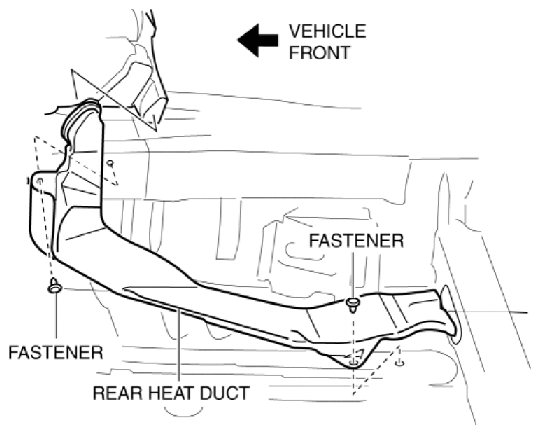

    Fig 2: Removing Rear Heat Duct Fastener (Driver-Side)
    G10910239Courtesy of MAZDA MOTORS CORP.
  7. Remove the rear heat duct.
  8. Install in the reverse order of removal.
