Heater Hose Removal/Installation
WARNING: This page is about a different car, the 2016 Mazda CX-3. However, it is still accessible from the selected car via links, so may be relevant.
- Drain the engine coolant. (See ENGINE COOLANT REPLACEMENT .)
- Remove the plug hole plate. (See PLUG HOLE PLATE REMOVAL/INSTALLATION .)

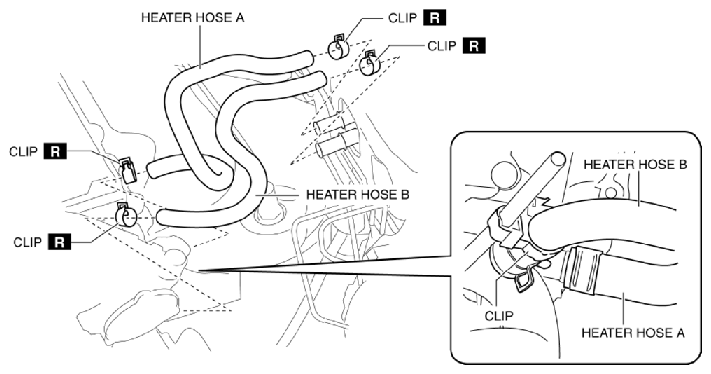

- Remove the clips.
- Remove the heater hose A.
- Remove the heater hose B.
- Install in the reverse order of the removal.
- Inspect for engine coolant leakage. (See ENGINE COOLANT LEAKAGE INSPECTION .)
