Blower fan controller terminal
- B(+)-body ground(-)

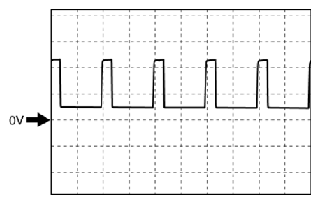

Oscilloscope setting
- 5 V/DIV (Y), 1 ms/DIV (X), DC range
Vehicle condition
- Switch the ignition ON (engine off or on)
- Airflow mode: VENT
- Air intake mode: RECIRCULATE
