Drain Hose Installation Note

WARNING: This page is about a different car, the 2016 Mazda CX-3. However, it is still accessible from the selected car via links, so may be relevant.

Align the notch of the drain hose with the projection of the A/C unit, and install it.

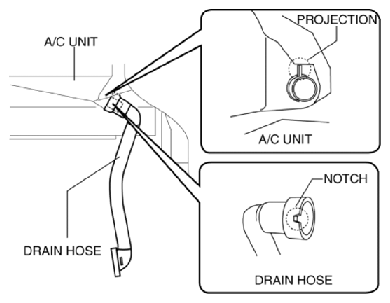

Fig 1: Aligning Notch Of Drain Hose With Projection Of A/C Unit
Courtesy of MAZDA MOTORS CORP.
