Vacuum Hose Removal/Installation: Notes

WARNING: This page is about a different car, the 2016 Mazda CX-3. However, it is still accessible from the selected car via links, so may be relevant.

Remove the following parts as a single unit. (See INTAKE-AIR SYSTEM REMOVAL/INSTALLATION [SKYACTIV-G 2.0] .)
- Fresh-air duct
- Resonance chamber
- Air hose
- Air cleaner cover
- Air cleaner element
- Air cleaner case
Remove the battery and battery tray. (See BATTERY REMOVAL/INSTALLATION [SKYACTIV-G 2.0] .)
Pinch open the clamp using pliers and disconnect the vacuum hose.

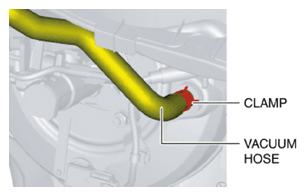

Fig 1: Identifying Vacuum Hose Clamp
Courtesy of MAZDA MOTORS CORP.
Detach the vacuum hose from the clip.

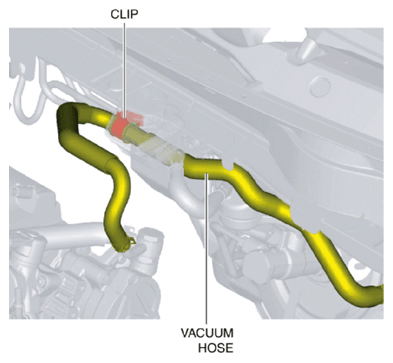

Fig 2: Identifying Vacuum Hose Clip
Courtesy of MAZDA MOTORS CORP.
Pinch open the clamp using pliers and disconnect the vacuum hose.

Fig 3: Disconnecting Vacuum Hose
Courtesy of MAZDA MOTORS CORP.
Remove the vacuum hose.
Install in the reverse order of removal. (See VACUUM HOSE INSTALLATION NOTE .)
