Rear Brake (Disc) Removal/Installation: Notes

WARNING: This page is about a different car, the 2016 Mazda CX-3. However, it is still accessible from the selected car via links, so may be relevant.

Remove in the order indicated in the figure.
Install in the reverse order of removal.
After installation, add brake fluid, bleed the air, and inspect for fluid leakage. (See BRAKE FLUID AIR BLEEDING .)

Pump the brake pedal a few times and inspect the following:

The disc pad projection is securely installed to the piston groove
Parking brake lever stroke
Brake drag

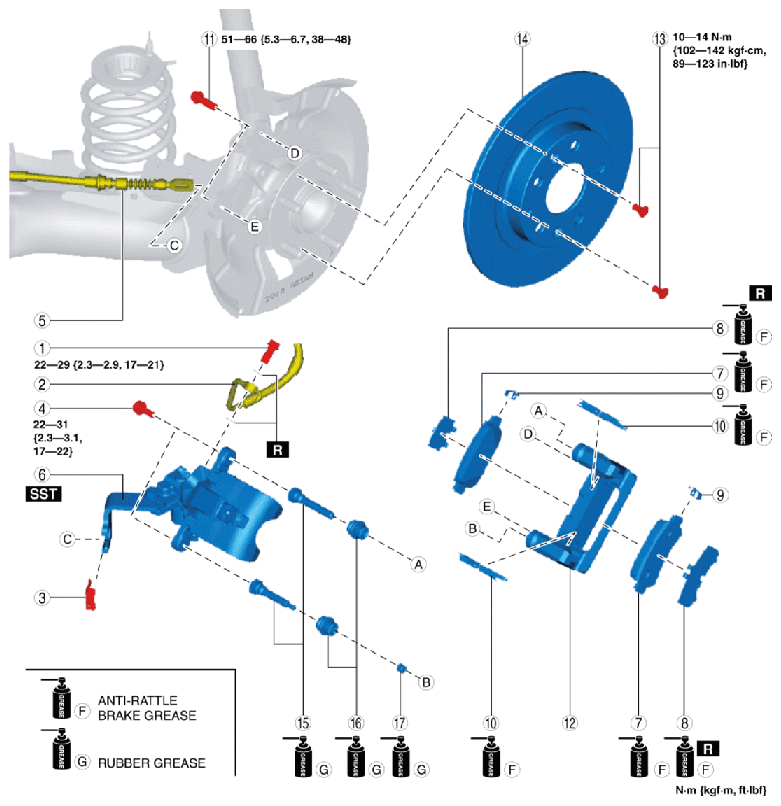

Fig 1: Rear Brake Components With Torque Specifications

Courtesy of MAZDA MOTORS CORP.

COMPONENT DESCRIPTION

1	Bolt
2	Brake hose
3	Clip
4	Bolt
5	Rear parking brake cable
6	Caliper (See Caliper Installation Note .)
7	Disc pad (See DISC PAD (REAR) REPLACEMENT .)
8	Shim (See DISC PAD (REAR) REPLACEMENT .)
9	Wear indicator
10	Guide plate
11	Bolt
12	Mounting support
13	Screw
14	Disc plate
15	Slide pin
16	Dust boot
17	Bushing
