Brake Hose (Rear) Removal/Installation

WARNING: This page is about a different car, the 2016 Mazda CX-3. However, it is still accessible from the selected car via links, so may be relevant.

Remove in the order indicated in the figure.
Install in the reverse order of removal.

After installation, add brake fluid, bleed the air, and inspect for fluid leakage. (See BRAKE FLUID AIR BLEEDING .)

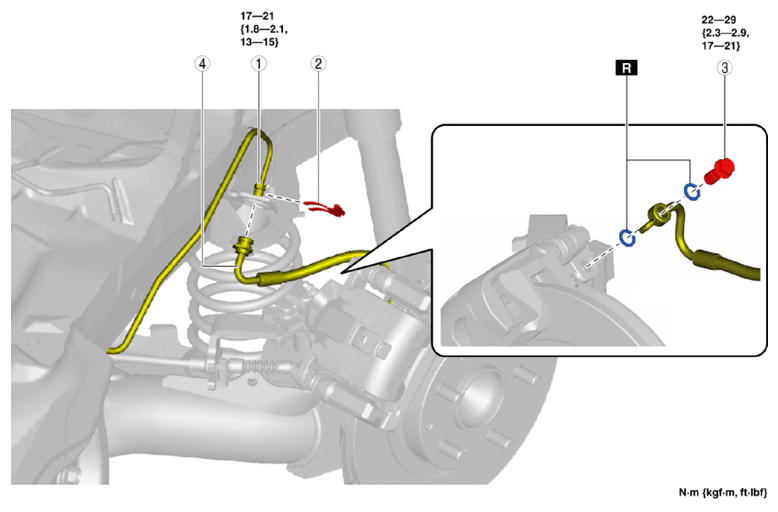

Fig 1: Rear Brake Hose Bolts With Torque Specifications

Courtesy of MAZDA MOTORS CORP.

COMPONENT DESCRIPTION

1	Brake pipe
2	Clip
3	Bolt
4	Brake hose
