Brake Hose (Front) Removal/Installation
WARNING: This page is about a different car, the 2016 Mazda CX-3. However, it is still accessible from the selected car via links, so may be relevant.

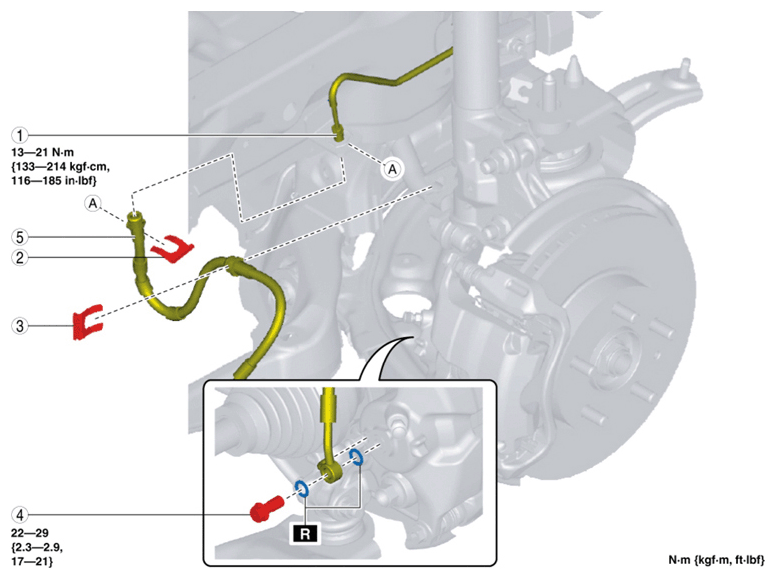

- Remove in the order indicated in the figure.
- Install in the reverse order of removal.
- After installation, add brake fluid, bleed the air, and inspect for fluid leakage. (See BRAKE FLUID AIR BLEEDING .)
COMPONENT DESCRIPTION
| 1 | Brake pipe |
| 2 | Clip |
| 3 | Clip |
| 4 | Bolt |
| 5 | Brake hose |
