Exhaust Manifold Insulator Installation Note
WARNING: This page is about a different car, the 2016 Mazda CX-3. However, it is still accessible from the selected car via links, so may be relevant.
- Temporarily tighten the exhaust manifold insulator.

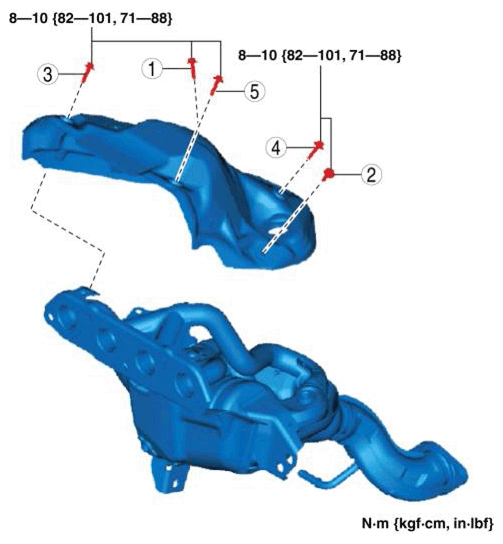

- Tighten the exhaust manifold insulator in the order shown in the graphic.
Courtesy of MAZDA MOTORS CORP.
Exhaust manifold insulator tightening torque
- 8-10 N.m {82-101 kgf.cm, 71-88 in.lbf}
- Check that there is no contact with an exhaust manifold and exhaust manifold insulator.
