Front Side

WARNING: This page is about a different car, the 2016 Mazda CX-3. However, it is still accessible from the selected car via links, so may be relevant.
  1. Install the clips to the side step molding.

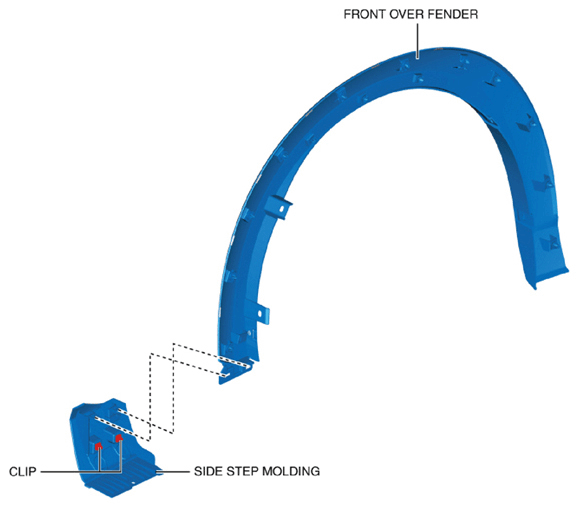

    Fig 1: Installing Clips To Side Step Molding
    G10914622Courtesy of MAZDA MOTORS CORP.
  2. Install the side step molding to the front over fender.
  3. Install the front over fender. (See FRONT OVER FENDER REMOVAL/INSTALLATION .)
