Side Spoiler Removal/Installation

WARNING: This page is about a different car, the 2016 Mazda CX-3. However, it is still accessible from the selected car via links, so may be relevant.
  1. Disconnect the negative battery cable. (See NEGATIVE BATTERY CABLE DISCONNECTION/CONNECTION .)
  2. Remove the liftgate upper trim. (See LIFTGATE UPPER TRIM REMOVAL/INSTALLATION .)
  3. Remove the rear spoiler. (See REAR SPOILER REMOVAL .) (See REAR SPOILER INSTALLATION .)
  4. Remove the screws.

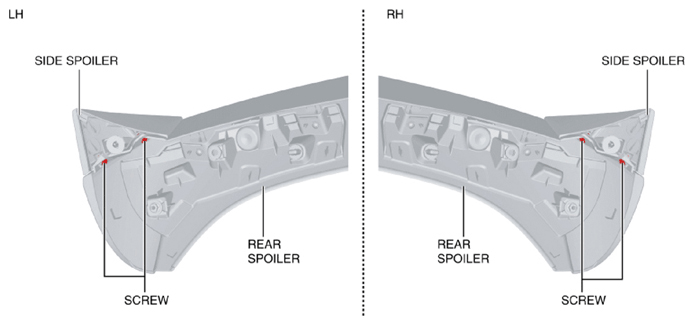

    Fig 1: Removing Rear Spoiler Screws
    G10914651Courtesy of MAZDA MOTORS CORP.
  5. Move the side spoilers in the direction of the arrows shown in the figure and pull the side spoiler pins out of the rear spoiler.

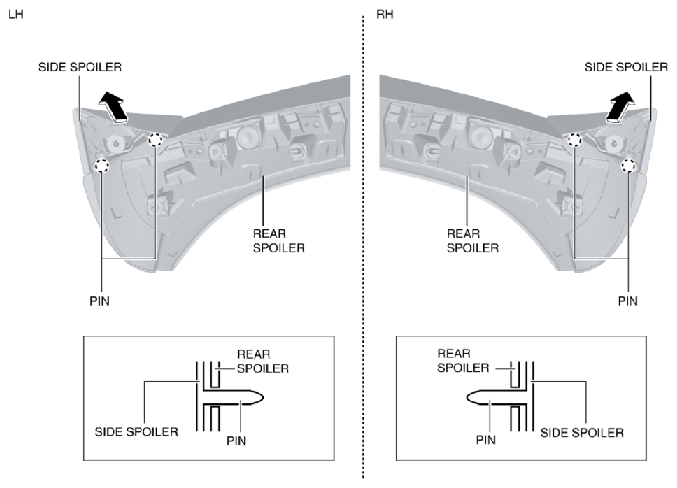

    Fig 2: Moving Side Spoilers
    G10914652Courtesy of MAZDA MOTORS CORP.
  6. Remove the side spoiler.
  7. Install in the reverse order of removal.
