Reusing side garnish

WARNING: This page is about a different car, the 2016 Mazda CX-3. However, it is still accessible from the selected car via links, so may be relevant.
  1. Install the clips to the side garnish.

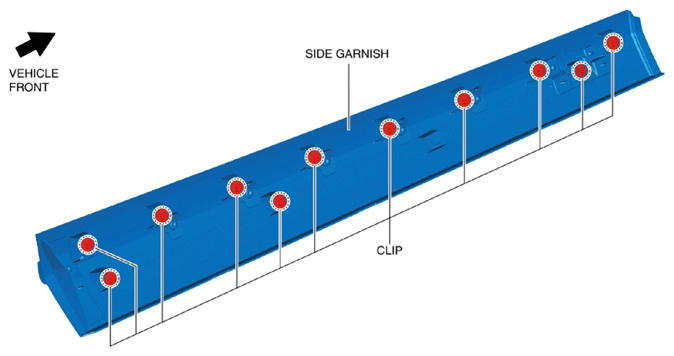

    Fig 1: Installing Clips To Side Garnish
    G10914568Courtesy of MAZDA MOTORS CORP.
  2. Install the clips to the side garnish.

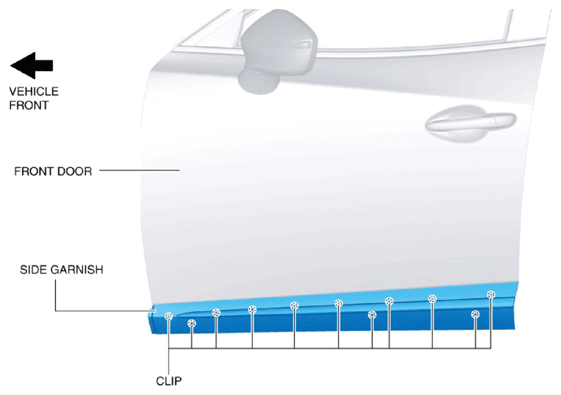

    Fig 2: Installing Clips To Side Garnish
    G10914569Courtesy of MAZDA MOTORS CORP.
  3. Install the hole cover.
