Rear Deflector Removal/Installation

WARNING: This page is about a different car, the 2016 Mazda CX-3. However, it is still accessible from the selected car via links, so may be relevant.
  1. Remove the bolts and fasteners.

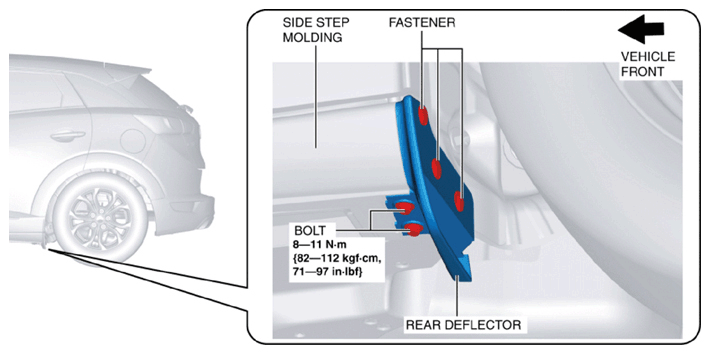

    Fig 1: Removing Rear Deflector Bolts And Fasteners
    G10914639Courtesy of MAZDA MOTORS CORP.
  2. Remove the rear deflector.
  3. Install in the reverse order of removal.
