Ornament Installation

WARNING: This page is about a different car, the 2016 Mazda CX-3. However, it is still accessible from the selected car via links, so may be relevant.
  1. Remove any grease or dirt from the ornament installation surface of the liftgate.

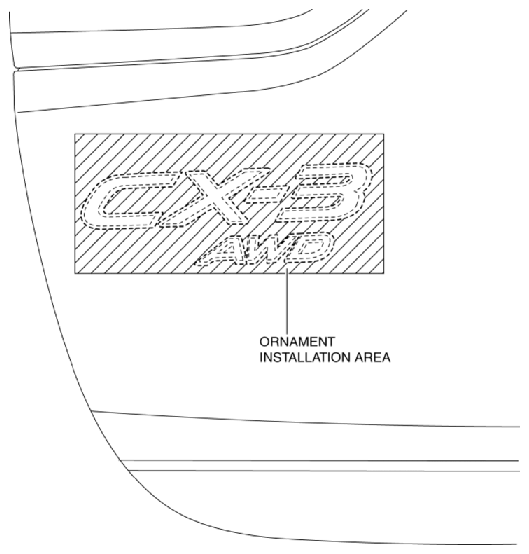

    Fig 1: Identifying Ornament Installation Area
    G10914653Courtesy of MAZDA MOTORS CORP.
  2. Warm the ornament installation area to between 15 °C {59°F}  and 40 °C {104°F}  using a hot air drier.
  3. Install the ornament to the position shown in the figure.

    LH

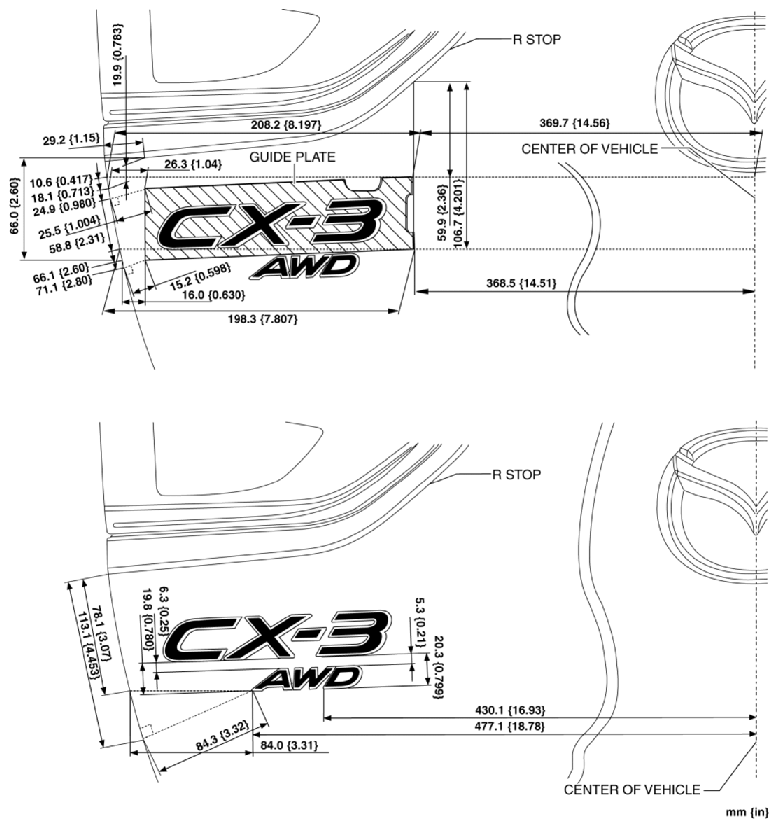

    Fig 2: Identifying Vehicle Guide Plate Dimension (LH)
    G10914654Courtesy of MAZDA MOTORS CORP.

    RH

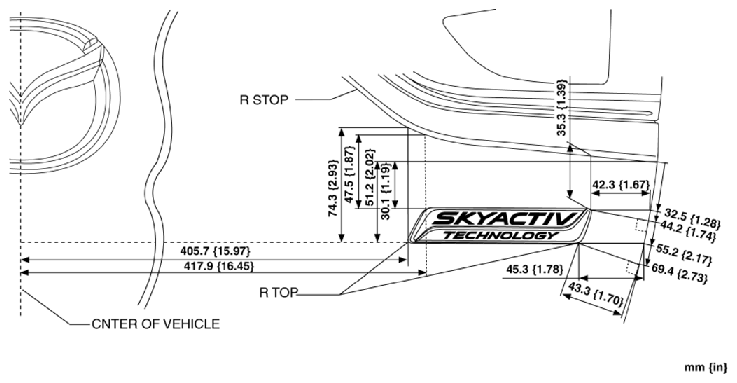

    Fig 3: Identifying Vehicle Guide Plate Dimension (RH)
    G10914655Courtesy of MAZDA MOTORS CORP.
  4. Press the ornament to adhere the double-sided adhesive tape to the ornament installation area.
