Front Sash Molding Installation

WARNING: This page is about a different car, the 2016 Mazda CX-3. However, it is still accessible from the selected car via links, so may be relevant.

After aligning the front sash molding clip to the front sash molding installation hole, hook the front sash molding tab to the front door.

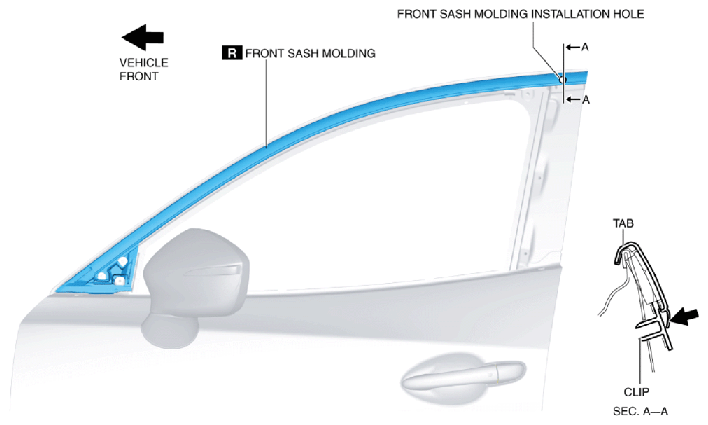

Fig 1: Aligning Front Sash Molding Clip To Front Sash Molding Installation Hole
Courtesy of MAZDA MOTORS CORP.
Press in the front sash molding in the direction of the arrow shown in the figure and attach the front sash molding clip to the front door.

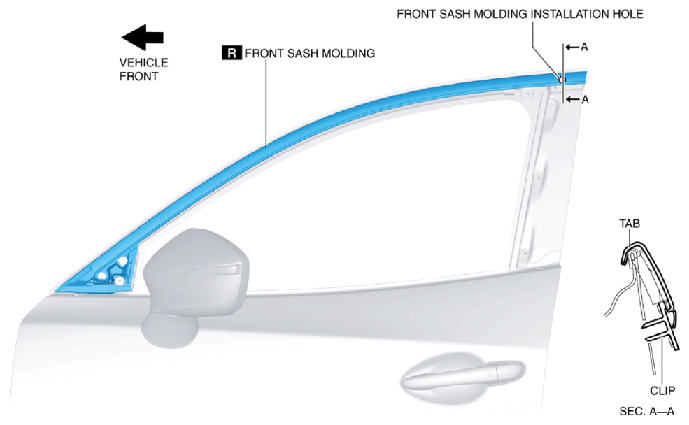

Fig 2: Pressing Front Sash Molding
Courtesy of MAZDA MOTORS CORP.
CAUTION:
- Do not press the front sash molding in any place other than the rubber areas.
Press in the front sash molding in the direction of the arrow shown in the figure and install the tab to the front door.

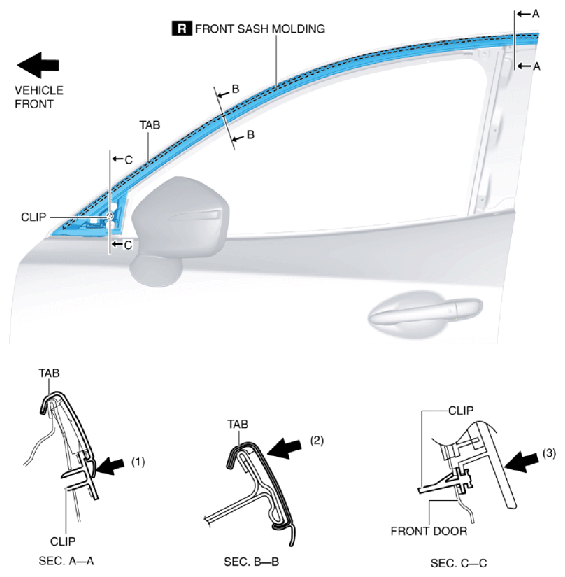

Fig 3: Pressing Front Sash Molding
Courtesy of MAZDA MOTORS CORP.
NOTE:
- After installing the front sash molding, verify that tabs are connected properly to the body.
Install the following parts:
1. Front door garnish (See FRONT DOOR GARNISH INSTALLATION .)
2. Front beltline molding (See FRONT BELTLINE MOLDING REMOVAL/INSTALLATION .)
3. Sail garnish (See SAIL GARNISH INSTALLATION .)
