Front Deflector Removal/Installation

WARNING: This page is about a different car, the 2016 Mazda CX-3. However, it is still accessible from the selected car via links, so may be relevant.
  1. Remove the screws and fastener.

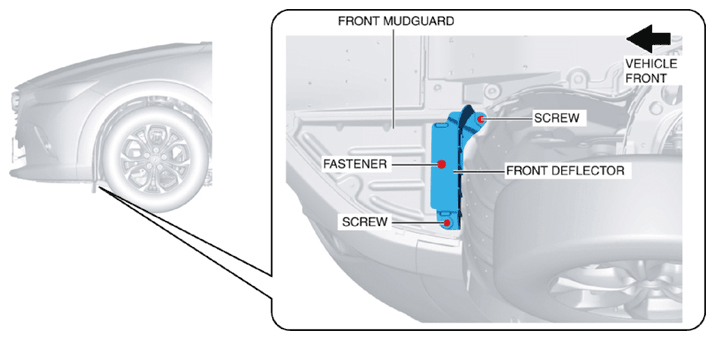

    Fig 1: Removing Front Deflector Screws And Fastener
    G10914637Courtesy of MAZDA MOTORS CORP.
  2. Move the front deflector in the direction of the arrow shown in the figure and remove the front deflector from the front mudguard while detaching the hooks.

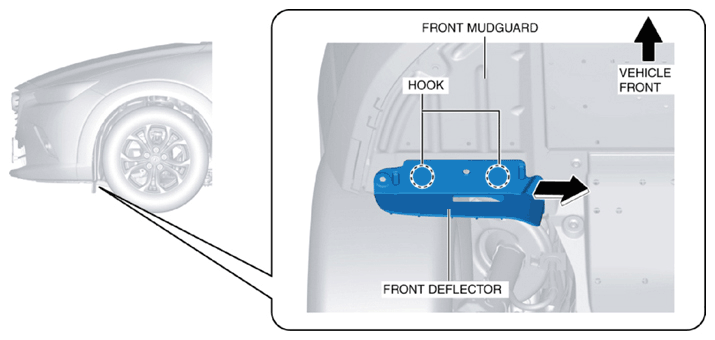

    Fig 2: Removing Front Deflector From Front Mudguard
    G10914638Courtesy of MAZDA MOTORS CORP.
  3. Install in the reverse order of removal.
